Notice Board

The notice board note_info.pnl provides an information platform for the exchange of important messages between the system users.

You can create, keep history as well as delete notes. You can view the history of the last 24 months.

Therefore, add the symbol (note_info.pnl) from the object catalog to the desired panel (for example to the used panel topology navigation panel).

Select a string data point for the dollar parameter $DP. The note will be saved in the data point. In order to query historic data, archive the data point.

In order to add a new note click in the table, enter a note and save the note using the button on the right (see image The Notice Board "note_info.pnl" below).

A written yellow page shows whether a note was saved currently .

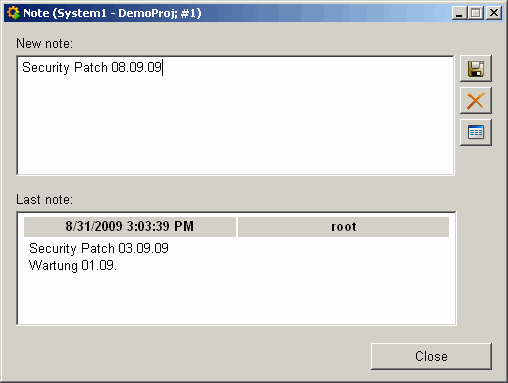

Figure 1. The Notice Board "note_info.pnl"

In the panel the last note will be shown. The history shows all notes.

You can view the history through the button.

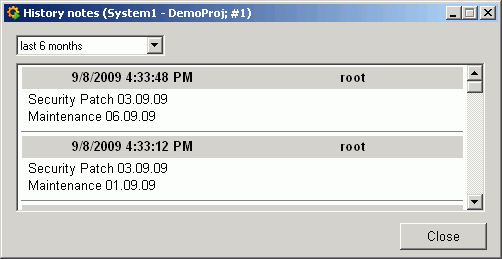

Figure 2. The History of the last 6 Months

You can select between 6, 12 or 24 months.
