Flap_Hand, Slide_Valve_Hand1

These two symbols are represented by the data point type Slide_Valve_Hand1. There are only four data point elements as control is manual; there is no simulation panel as the status commands are simulated directly in the equipment operational panel.

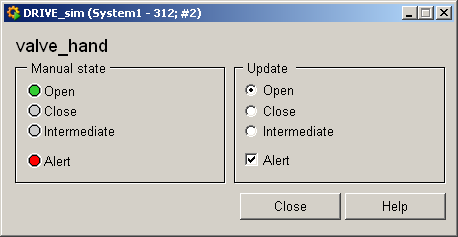

Equipment operational panel Slide_Valve_Hand1

The left side of the equipment operational panel displays the states (Open/Close/Undefined) and PLC responses and any faults.

The right part of the panel displays the actions simulated on the periphery. No commands are possible in manual control mode.

Figure 1. Control panel

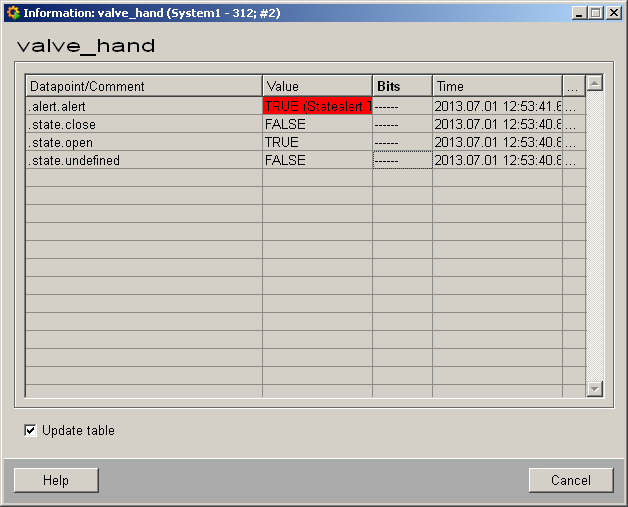

Information panel Slide_Valve_Hand1

The information panel contains details on the associated data point elements. Please see the chapter data point types for the symbol catalog (see SLIDE_VALVE_HAND1) in the PARA module for a description of the data point types and their elements.

Figure 2. Information panel

The table contains all data point elements either with their name or description, their values (contents), status (bits) and source time. The "..." buttons open detailed information on the event or alert (see alert table).
