Requirements for STD_symbols

System requirements:

• The standard symbols are included in the installation.

Installation:

For the use of the standard objects, a normal WinCC OA installation is sufficient.

The actual references are located in <wincc_oa_path>/panels/objects in the directory named after the appropriate catalog. The respective configuration panels can be found in <wincc_oa_path>/panels/objects_parampanels, while operating, information and simulation panels are stored in the directory < wincc_oa_path>/panels/objects_parts , again in the directory for the appropriate catalog.

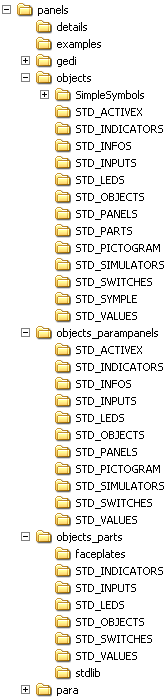

The following diagram shows the directory structure in WinCC OA after installation has been successfully completed:
