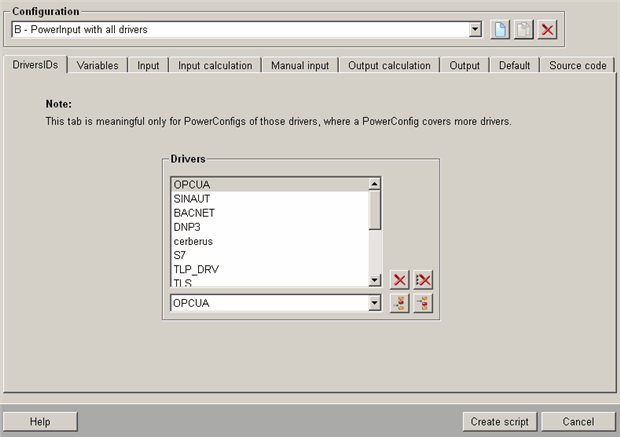

DriverIDs tab

Details only need to be entered on this tab for a defined PowerConfig for more than one driver (for example, IEC, Modbus, etc.). The PowerConfig "power input for all drivers" would be an example of a PowerConfig that has settings that need to be made in this tab. This tab is only displayed when selecting/creating a PowerConfig for the periphery address.

The PowerConfig script does not determine which variables and dynamic attributes are used until the driver is selected.

Select a driver from the bottom combo box (the drivers supported in WinCC OA in conjunction with mass configuration are displayed here), and place this in the list above. The buttons on the right are available for other functions (what each button does is described in Default buttons on configuration panels).
