Switch layer

With this panel the different layers can be switched on and off. You can also show and hide several layers at the same time.

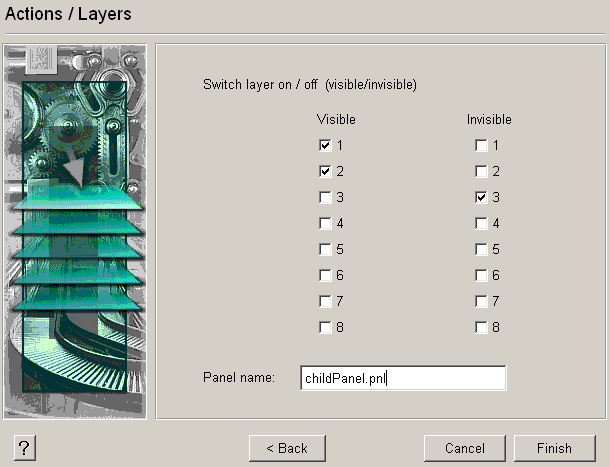

Figure 1. Switch layer window

Example

For example, you can display a detail view of a component in the second layer by clicking on the icon.

  1. Select the layers to be switched.

  2. Enter name of the panel whose layers you want to make visible or invisible. If no panel has been specified, the own panel will be used.

If you have two graphics objects on different layers of the same panel (for example, layer 1 and 2), only the objects of layer 2 will be displayed after a corresponding click.
