Bar trend

The bar trend widget (see also Bar trend) is the basis for implementing a general panel for displaying dynamic arrays ("Dyn data points", see Data point types).

The bar trend "sum trend" in the DemoApplication (<proj_path>/panels/vision/bar_trend.pnl) is used to display the data point elements of the following data types:

  • dyn_int

  • dyn_uint

  • dyn_float

  • dyn_bool

These data point elements contain the values of the bar trend as one-dimensional arrays. In the diagram, the array index for the value is displayed along the horizontal axis and the value itself is represented by the bar height. All values originate from the same data point element with the same time stamps, so normally there is no temporal relationship.

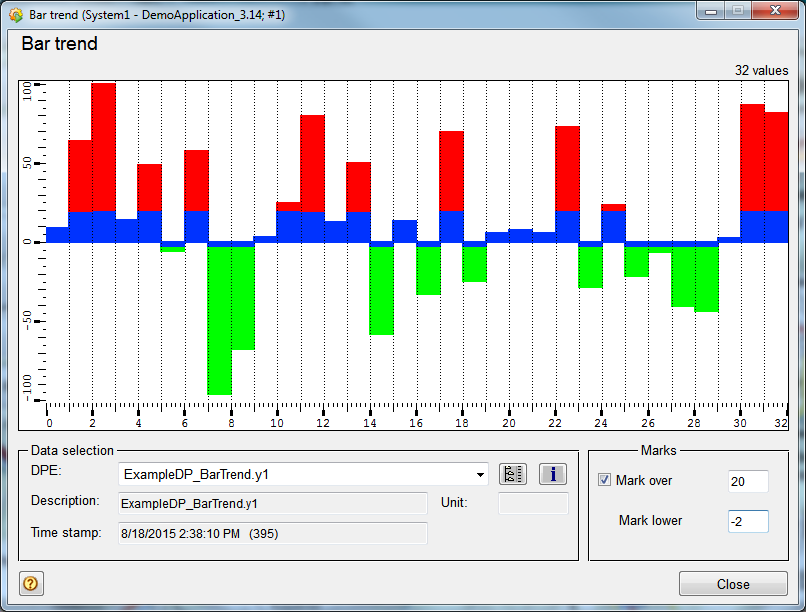

Figure: Bar Trend in the DemoApplication

Select the data point elements either via the combo box (most recent data point elements used) or by entering the data point name directly. You can also select an element from a tree using the data point selector to the right of the combo box. The button with the blue "i" displays detailed information about the selected data point element.

Note: You can realize with the WinCC OA bar-trend widget far more complex tasks than shown in the bar-trend example of the DemoApplication. For instance, you can color each bar individually, enable fault and mean value indicators and more. For more information, see section Bar trend.
