Configuration of workstations

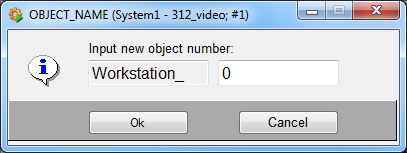

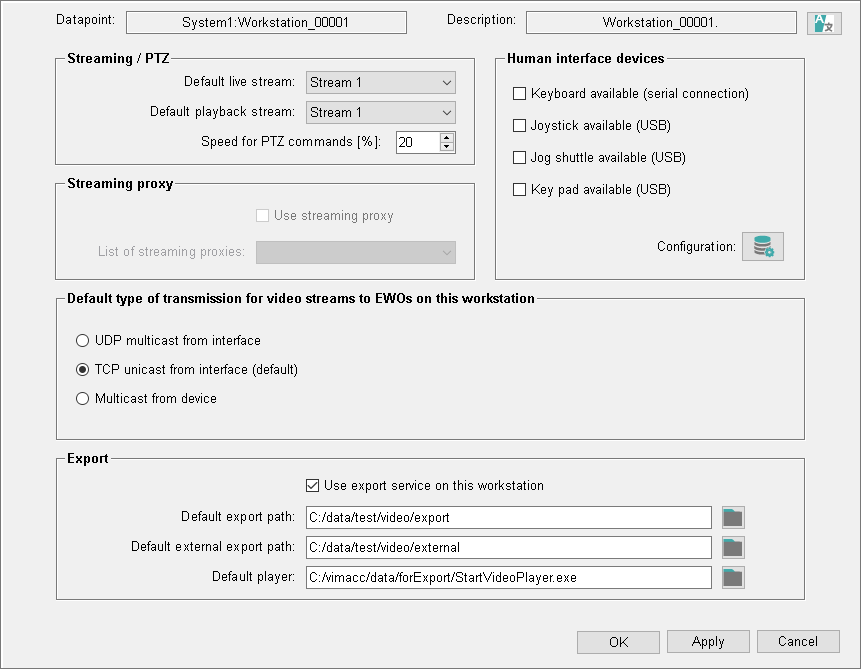

Each WinCC OA User Interface communicates with the video application via a workstation data point. For a working system it is necessary that for each user interface number which is used in the system a work station data point must be created. The data point is the data point interface to the video widget which is connected to the user interface and saves workstation-specific settings. Creating a new workstationOpen the context menu with a right mouse click on Workstation and select create new object. The following window is opened: After entering the workstation number the configuration panel will be opened. Configuration Streaming / PTZ Default live streamDefines which stream of a camera is displayed by default. Default-playback streamDefines which stream of a camera is used as default for a playback. Speed for PTZ commandsDefines the speed of PTZ commands if they are triggered by buttons in the user interface. Human Interface Devices Keyboard availableDefines if a keyboard is connected to the workstation. If this option is selected, the connection monitoring of the keyboard is started. Streaming proxy Use streaming proxyIf enabled, streams are requested via the streaming proxy. List of streaming proxiesDefines the streaming proxy which shall retrieve the video streams. Default type of transmission for video streams to EWOs on this workstationThe multicast setting is defined here for all EWOs in a user interface. The function VIDEO_OA_ewoInit() must be defined for the EWO to enable this setting. UDP Unicast from InterfaceThe EWO requests the stream via UDP unicast communication from the interface. In addition, transport=0 is written to ".object.device.definition" of the respective data point. UDP Multicast from InterfaceThe EWO requests the stream via UDP multicast communication from the interface. In addition, transport=1 is written to ".object.device.definition" of the respective data point. TCP Unicast from InterfaceThe EWO requests the stream via TCP unicast communication from the interface. In addition, transport=2 is written to ".object.device.definition" of the respective data point. Multicast from deviceThe EWO requests the stream via multicast from the image source. In addition, transport=5 is written to ".object.device.definition" of the respective data point. Export Export service availableActivates the export service. In order to export video data, a vimacc server installation must be available. It is not possible to export video data to external hosts via this method. Therefor, you have to configure an export server for the requested host. The export can be triggered via the workstation of the corresponding host. The following parameters can be defined after selecting this check box:

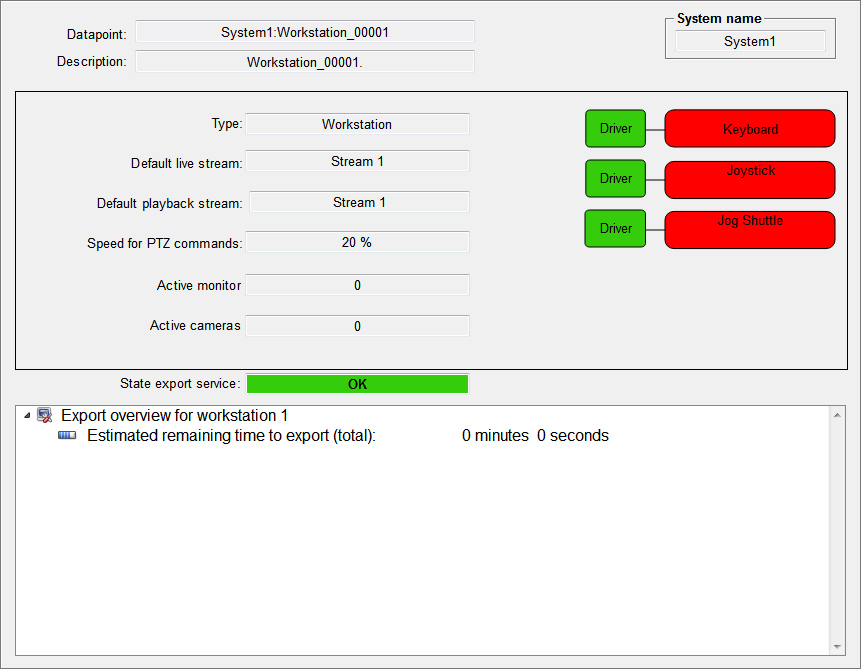

The settings for a workstation can be displayed by a left mouse click on the appropriate object in the video object explorer. TypeIs given by the system and is always Workstation. Default live streamDisplays which stream of a camera is used as default for live images. Default playback streamDisplays which stream of a camera is used as default for playbacks. Speed for PTZ commandsDisplays how fast PTZ commands are executed when they are triggered by buttons in the user interface. Active monitorDisplays the active monitor. The active monitor is the monitor which is currently controlled by a keyboard. Monitor 1 is always your workstation, independent of the number of displayed streams. Active cameraDisplays the active camera. The active camera is the camera to which the keyboard currently sends control commands. Keyboard driverThis area is displayed when the option "Keyboard available" is selected during the configuration. It is displayed green as long as the keyboard driver responds to a watchdog signal of the system cyclically within a minute. In case that the watchdog signal is not answered, the area is displayed in red. KeyboardThis area is displayed when the option "Keyboard available" is selected during the configuration. It is displayed green as long as the keyboard driver is connected to the keyboard. If there is no connection for one minute the area is displayed in red. Driver JoystickThis area is displayed when the option "Joystick available" is selected during the configuration. It is displayed green as long as the driver responds to a watchdog signal of the system cyclically within a minute. In case that the watchdog signal is not answered, the area is displayed in red. JoystickThis area is displayed when the option "Joystick available" is selected during the configuration. It is displayed green as long as the driver is connected to the joystick. If there is no connection for one minute, the area is displayed in red. Driver Jog ShuttleThis area is displayed when the option "Jog Shuttle available" is selected during the configuration. It is displayed green as long as the driver responds to a watchdog signal of the system cyclically within a minute. In case that the watchdog signal is not answered, the area is displayed red. Jog ShuttleThis area is displayed when the option "Jog Shuttle available" is selected. It is displayed green as long as the driver is connected to the Jog Shuttle. If there is no connection the area is displayed red. Status Export ServiceDisplays the status of the export service for this workstation. The area below shows an overview of exports for this workstation. Monitor fieldThe monitor field defines which monitor numbers corresponds which dialogs on which display monitors. Furthermore it defines which monitor numbers are selectable. Monitor 1 is always the user interface of the workstation. The panel can be opened via the context menu (right mouse click - monitor field).

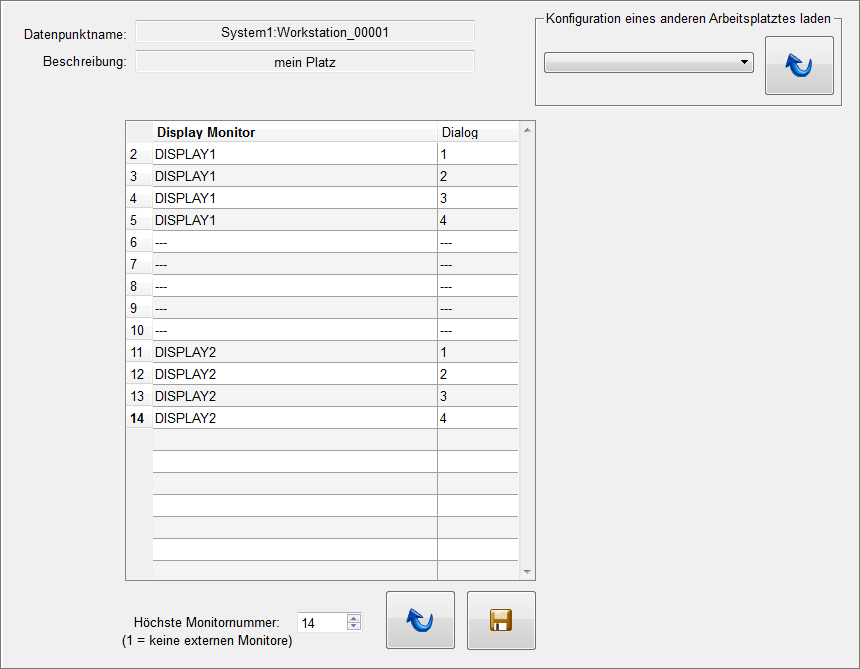

Highest monitor number defines the number of the biggest selectable monitor number. Changes to this setting must be confirmed by the refresh button. It is possible to select one display monitor and one dialog for each monitor number. If the option "---" is selected for a display monitor, this monitor number is not occupied and the operating shows "monitor unknown" for this number. The option "configuration fo another workstation" allows to load the monitor field of another workstation. Therefore, monitor fields can be copied to other workstations. Changes to the monitor filed of another workstation are only valid after clicking on the save button. |
