Configuration of hosts

It is possible to start display servers, export servers, recording servers and RTDP servers multiple times. The instances can be started on one host or on multiple hosts. If the instances shall not run on the video servers but on other hosts, each of this hosts must be created in the object explorer.

Creating a new host

Open the context menu with a right mouse click on Host and select create new object. The following window is opened:

Figure 1. Entering the host name

After entering the host name the configuration panel will be opened.

Configuration

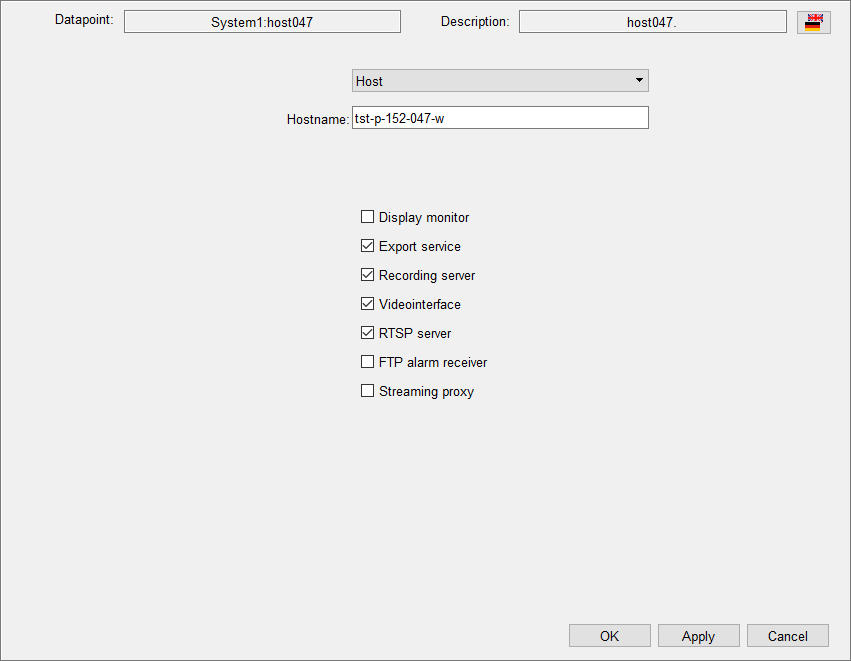

Figure 2. Host configuration
Host / Video server

Define whether the host shall be operated as a video server within the system.

Hostname

Name of the host

The following check boxes define which functions are available on the host. The function will only be executed if the function itself is configured.

Display Monitor

The host is available for configuration of display servers.

Export Service

Host is available for the export of video data.

Recording Server

Host is available for storing video data.

Video Interface

Host provides a video interface.

RTSP Server

Host is available for configuration of RTSP servers.

FTP Alarm Receiver

Host is available for configuration of FTP alarm receivers.

Streaming proxy

Host can be configured as streaming proxy.

Overview

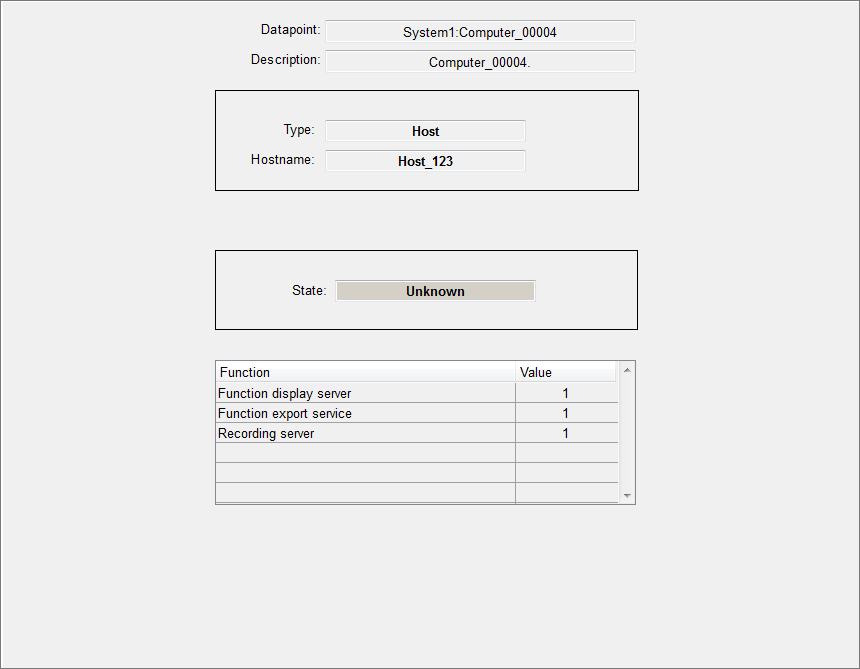

The following status overview panel is opened by a left mouse click on a created host object in the object explorer.

Figure 3. Status overview panel

Beneath the host name and the IP address the unlocked functions for the host are displayed. The functions are only executed if the function itself is configured for this host. A host object is only mapping the hardware component.
