"timeScaleVisibility"
Shows the time scale of a trend at the top, at the bottom or hides it.
Synopsis
setValue(string shape, "timeScaleVisibility", int area, bool shown, int
position);
getValue(string shape, "timeScaleVisibility", int area, bool shown, int
position);
shape.timeScaleVisibility(int area, bool shown, int position);
Parameters
| Parameter | Description |
|---|---|
| shape | Name of the object |
| area | The area |
| shown |
FALSE = The time scale of the trend will not be shown. TRUE = The time scale will be shown. |
| position |
Specifies where the scale will be shown: SCALE_BOTTOM == 0 == (Bottom) SCALE_TOP == 1 == (Top) SCALE_LEFT == 2 == (left) SCALE_RIGHT == 3 == (right) |
Description
Shows the time scale of a trend area at the top, at the bottom, the sides, or hides it.
Example
In the first example, the time scale will be shown at the top (1) and, in the second example, at the bottom (0).
TREND1.timeScaleVisibility(0, TRUE, 1);

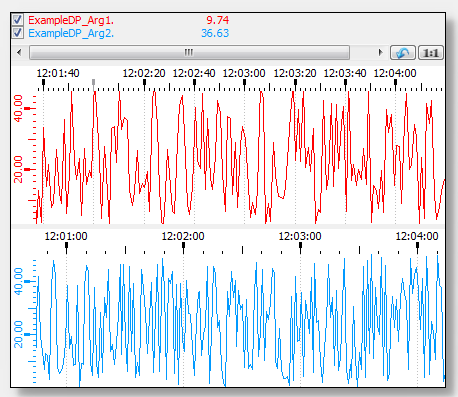

TREND1.timeScaleVisibility(0, TRUE, 0);Image: Time Scale is shown at the top
Assignment
Trend
