"showGrid"

This property activates or deactivates the grid of a trend.

Synopsis

setValue(string shape, "showGrid", bool on);

shape.showGrid(bool on);

Parameters

Parameter Description
shape Name of the object
on Activate (TRUE) or deactivate (FALSE) the grid.

Description

This property activates or deactivates the grid of a trend. Per default the grid is shown in the background of a curve. With the aid of the "showBackgroundGrid" attribute or the trend editor the grid can be shown in the foreground. This is meaningful when the area between curve and reference line is filled in (see "fill" - Curve).

The following example activates the grid.

Example

main()
{
  Trend1.showGrid(TRUE);
}

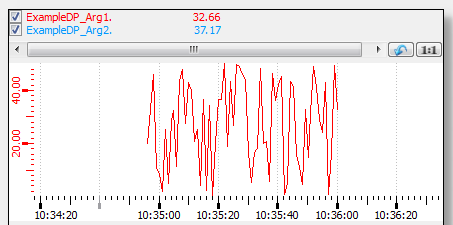

Abbildung 1. The Grid Lines were set to visible for the Trend

Assignment

Trend
