"curveYoungestPointColor"
Shows the current/youngest curve value in a value-over-value trend by drawing a point in a specific color.
Synopsis
setValue(string shape, "curveYoungestPointColor", string name, string
color);
getValue(string shape, "curveYoungestPointColor", string name, string
&color);
shape.curveYoungestPointColor(string name, string color);
Parameters
| Parameter | Description |
|---|---|
| shape | Name of the object (e.g. "trend1") |
| Name | Name of the curve, whose current value will be marked. |
| color | Color of the point. |
Description
Shows the current/youngest curve value in a value-over-value trend by drawing a point in a specific color. When the color parameter is passed empty, the color will be set to invalid and is not longer used.
Example
The following example colors the youngest point of the curve "curve1"; green.
main()
{
TREND1.curveYoungestPointColor("curve1","Green");

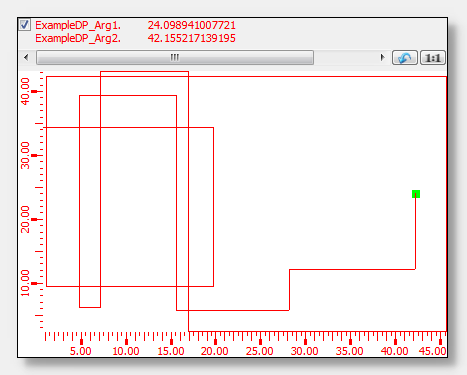

}Image: The Color of the youngest Point of the Curve was set to green
Assignment
Trend
