"curveLineType"

The attribute "curveLineType" sets the line type of a trend curve.

Synopsis

setValue(string shape, "curveLineType", string curve, string type);

getValue(string shape, "curveLineType", string curve, string &type);

shape.curveLineType(string curve, string type);

Parameters

Parameter Description
shape Name of the object
curve Name of curve
type Line type of a curve. You can find the needed line type using the function lineSelector().

Description

The attribute "curveLineType"; sets the line type of a trend curve.

Example

You can find out the line type by using the function "lineSelector".

main()
{
  string lSel;
  lineSelector(lSel);
  DebugN("Der Typ der Linie",lSel);
}

In the following example, the line type of a trend curve is set to "dashed,oneColor,JoinMiter,CapButt,3"

main()
{
  string kt = "[dashed,oneColor,JoinMiter,CapButt,3]";
  TREND1.curveLineType("Kurve",kt);
}

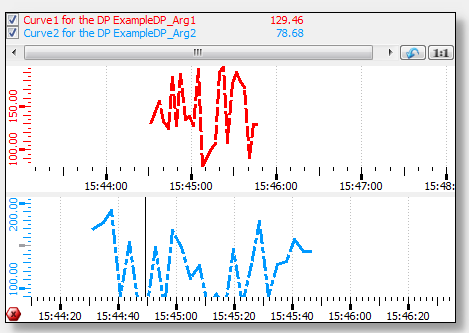

Abbildung 1. The Line Type of a Trend Curve was set to "dashed,oneColor,JoinMiter,CapButt,3"

Assignment

Trend
