Backend Local Out-of-Proc

This scenario is included in the basic WinCC OA - No extra package is required. For this scenario the execution type "Out-Of-Proc" is used. This means that the backend runs as a separate process.

Basic integrated NGA features (locally installed InfluxDB® as shipped with WinCC OA) as well as basic NGA features in redundant systems are included.

To be included in the basic WinCC OA NGA license, the InfluxDB® must run locally.

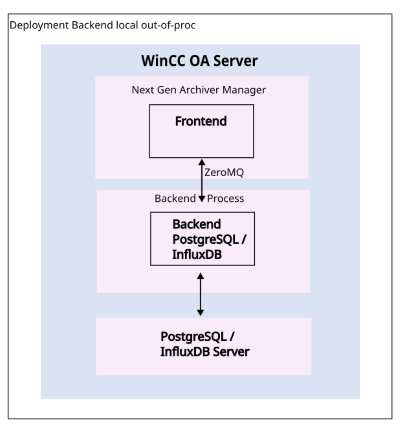

Figure 1. NGA deployment – backend local out-of-proc

The backend is a separate process, started and supervised by the Frontend Manager. The database is also running locally. To use the "Direct read" functionality (see Direct Read) , the execution type Out-Off-Proc (Separate process) for "direct read" must be used - see also chapter Database Control.

Note:

For the encrypted communication between the front (NGA manager)- and backend, see the chapter Using a Remote Backend with Encryption
