Data points as bearer of information

In WinCC OA it's possible to individually create device orientated data points. The basic concept of such a structured data point was introduced in the section Data point Concept, Process Image. In the following sections the practical use of data points combined with detailed background information will be provided.

In order to work with WinCC OA and to be able to create user interfaces for the use, the carrier of the presented information must be defined. These carriers are variables whose values present the current process information. Such process variables are called data point elements in WinCC OA.

In order to display existing data points or to create new ones, you usually use the database editor PARA. It can be opened with the already opened graphic editor GEDI using the symbol.

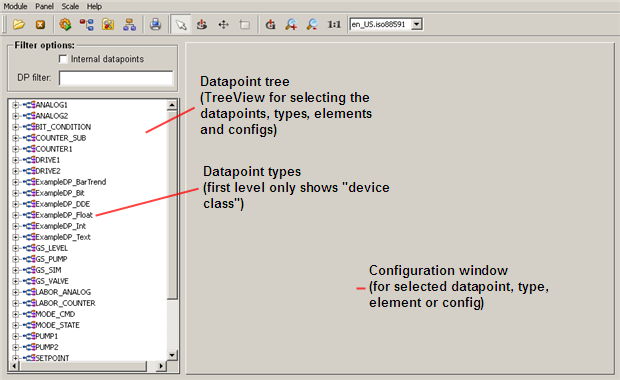

Figure 1. Database Editor PARA

Alternatively, we could also define the database editor as its own manager in the console and start it from the console. Therefore, open the manager selection dialog (see figure on the page Configuration of a Project) through the button, select the entry WCCOAui and enter the parameter "-m para" in the "Options" field. Consider that the restart option is set to "manual".

Data point types

The list in the field on the left side (in the figure above) shows all data point types available in the current project. Each of these data point types represents a whole class of devices or logical units. If you click on the "+" sign in front of the name of the data point type, a list of data points (instances/devices) of this type will be shown.

A data point type is a form of template for structured data points. Structure, naming and partly also configurations are already configured when defining the type.

Figure 2. Data point Type "PUMP1" as a Template of a whole Class of Devices

Before it's possible to create a structured data point as a representative of a device, a corresponding data point type has to be created as a template.

Data points

Each data point can represent a real device or a logical combination of information. It is built up of one or several, almost arbitrary structured data point elements. Each data point belongs to its data point type and is accordingly shown in the module PARA. A double click on the name of the data point type or the "+" symbol in the front of the name opens a list of all data points of one type.

The following image shows two typesavailable by default and their data points (instances). The data point type ExampleDP_Float has 4 data points (instances) in this case. This data point type consists ofonly one data point elementand can therefore only represent a single process variable. This corresponds to the common data model of most SCADA systems but is an exception in WinCC OA. This type (and also the other ExampleDP* types) are merely available for test or demonstration purposes.

Figure 3. Existing Instances of the Data point Types ExampleDP_Float and PUMP1

The data point type PUMP1 (displayed at the right) corresponds more to the common structure in WinCC OA. Numerous process variables are part of the device-oriented data point. At the start, PUMP1 has just a single data point instance. Even this is an exception: it is a master data point (MP) that can display certain configuration information for the type. The master data points will be described later. There are no real data point instances available for the type PUMP1 since this is a new, initially empty project.

Figure 4. Database Editor PARA - Data point Type ExampleDP_Float with data point ExampleDP_Arg1

Data point types and data points only exist within a project. Each of the projects on a computer can have other data point types and data points even with the same names. In order to transfer existing data point types and data points from a project to another one, the Import/Export function of the ASCII manager is used. For more information, see ASCII Manager Panel, basics.

Information at the data point element

Each data point element primarily represents the value of a process variable, however there is some important additional information about this value. It's a complete processimage since it maps all the essential attributes of a recorded value.

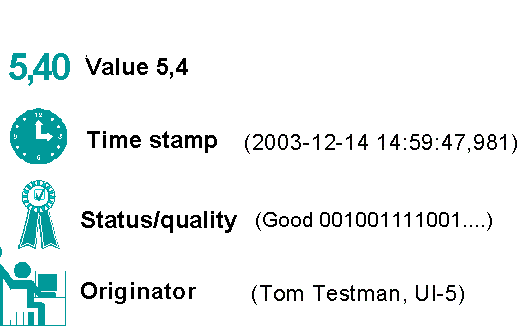

Figure 5. Information on the data point Element - Value with Attributes (Time, Quality, Origin)

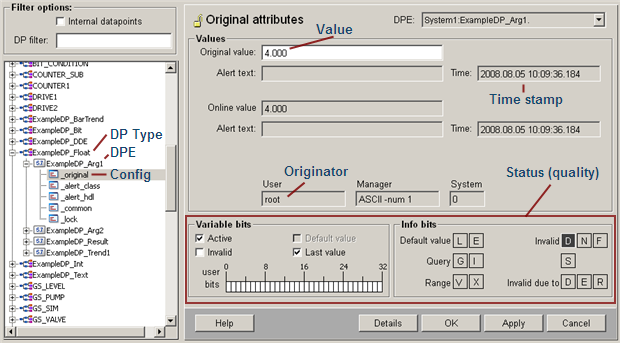

These additional attributes of the value could also be seen in the database editor PARA. Additionally, you can see that there are two different fields for value display.

Original value The value that was originally recorded (e.g. received from a controller). This original value always remains and can be queried also after automatic corrections (substitute value enabled). Active write operations are always performed on the original value.
Online value All function modules within WinCC OA work with this value. Normally, it is an identic copy of the original value. Only if a value is noted as invalid, a substitute value might be displayed. When reading a data point element (display, processing), the online value is always accessed.

For more information on the original value, see the chapter _original (Original attributes)

Data types

Data point elements can represent quite different information. In addition to the common binary and analog variables also higher and structured data types are available. Therefore, the data points can not only be used for the pure representation of process states of a control system but also for administration tasks, configurations, recipes and the like.

Data type Data Width Meaning
bool 1 Bit Binary variable
int 32 Bit Integer
unsigned 32 Bit Unsigned integer
float 64 Bit Float
bit32 32 Bit Bit pattern
char 8 Bit Character
string n x 8 Bit String (n characters long)
langString m x n x 8 Bit Multilingual string (n languages)
time 48 Bit Time / length
dpid - Data point identifier
typeref - Type reference
blob arbitrary Binary structure (binary large object)



Dynamic fields of above mentioned basic types (the used size and required space can be changed for each instance dynamically)


(char array,…)

Static fields of above mentioned basic types (the number of field elements is already defined when configuring).

The data type of a data point element is already defined when creating the data point type (together with the identification schema). This data type can be changed later which results in the change of all data points of this type.

When using floating point numbers, a point "." is used as the decimal separator. This is conform to the worldwide programming standard C/C++.
