Picture handling

WinCC OA can handle external image files both by static configuration and dynamically during runtime. Refer to (<proj_path>/panels/examples/picture_handling.pnl) panel "Picture handling" to see what kind of image files can be imported to WinCC OA and how. Choose a directory containing graphics files or select a concrete image file in the upper right half of the panel. The check boxes at the bottom define onto which type of graphics objects the image files should be loaded.

All graphics files in a directory (or by type default a subset of it) can be shown in this demonstration panel as an image set. Moreover, it is possible to change the scaling, size adjustment and position of the rectangle in the left half of the panel dynamically during runtime.

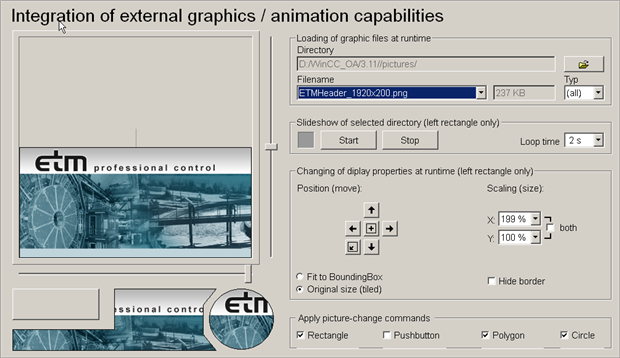

Figure: Example Panel "Picture handling"
