Display of cameras

The status information of cameras can be opened with a left mouse click on the appropriate camera object in the object explorer.

You can open the available streams via the buttons and if it is a PTZ camera you can send commands (via the control elements on the right side) and define the movement speed in % (1-100).

IP camera

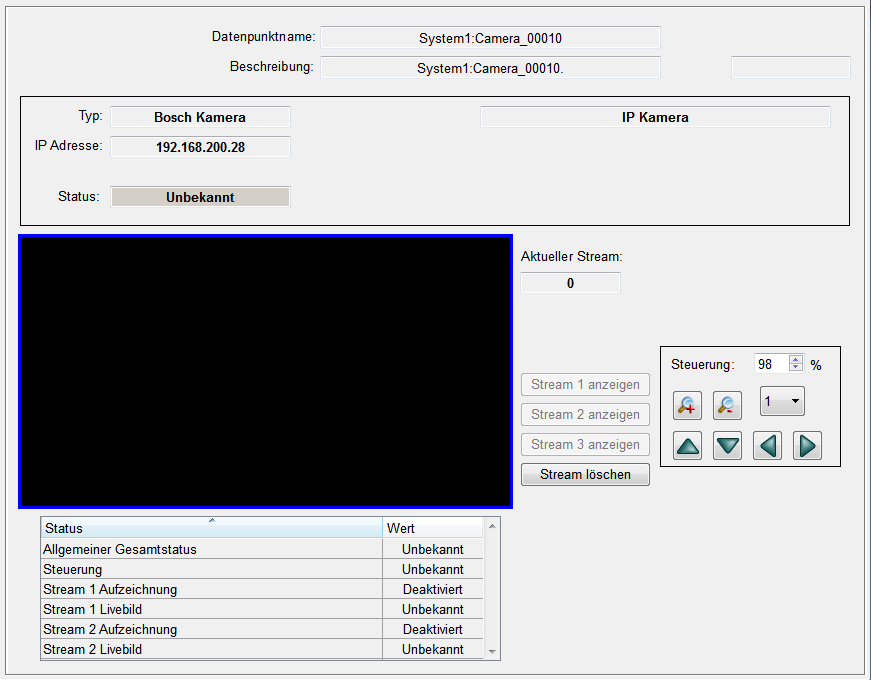

Figure 1. Status of IP cameras
Analog camera via encoder

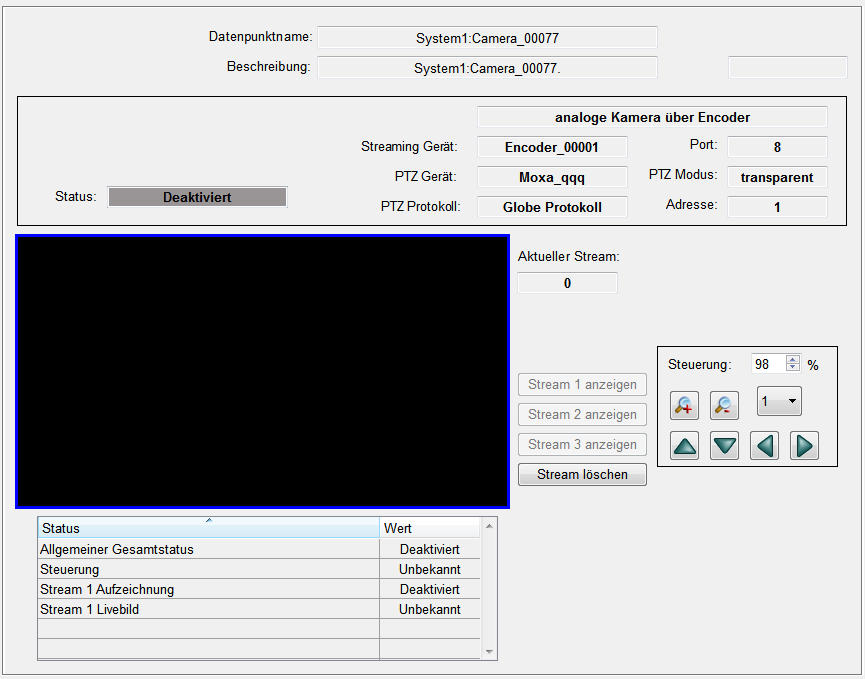

Figure 2. Status of analog cameras via encoders
Analog camera via external crossbar

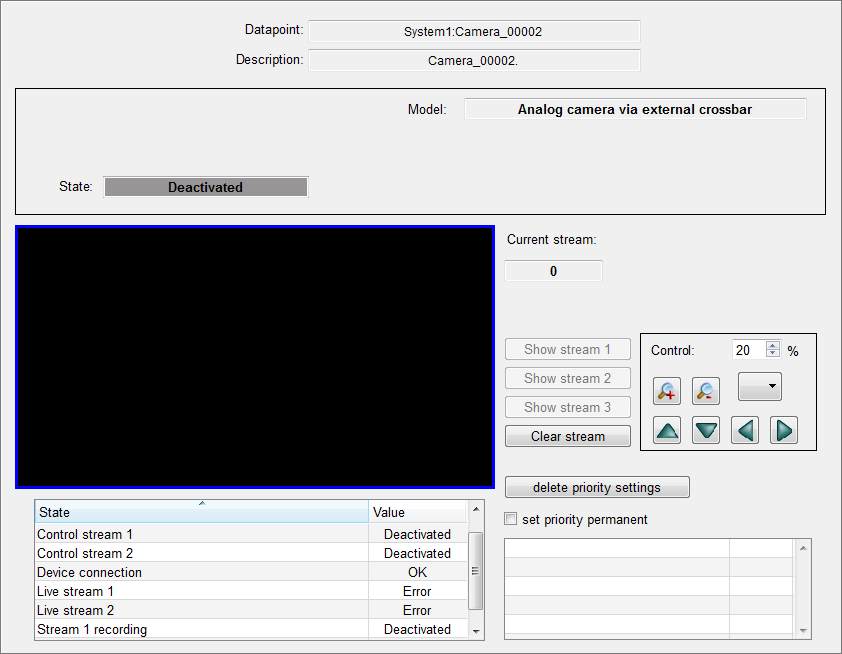

Figure 3. Status of analog cameras via external crossbars
Display priority

The priority can be set for each available stream of each available pool. The next camera is displayed via the selected pool and replaces an already opened camera with lower priority.

If the option set priority permanent is set, the priority setting remains as long as its not deleted. The button delete priority deletes all priority settings for this camera.

It is possible to reset all priority settings via the corresponding button in the crossbar panel.
