Structure of module GEDI

The following figure shows the GEDI window. The GEDI window contains the menu bar, toolbars, project view, property editor, one or more panel windows, catalog window, a title bar and a status bar. In the following figure, the console has been added also as a dock module to the GEDI (see function moduleAddDockModule()). Open the GEDI by adding the WinCC OA User Interface WCCOAui to the console and by starting it with the command line option.

WCCOAui -m gedi

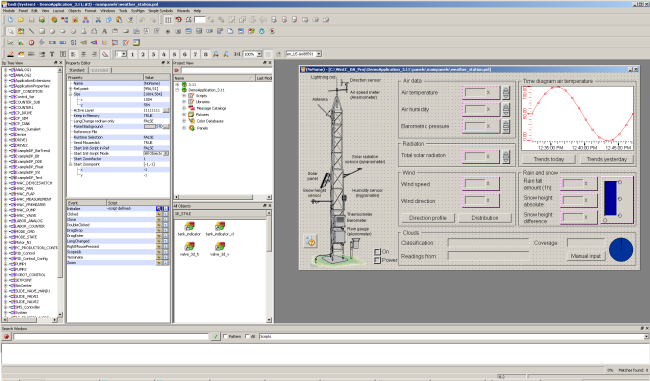

Figure 1. The GEDI window

As of the version 3.8 it is possible to drag and drop the property editor, catalog window and the project view and to open them individually as tabs in the GEDI.

Figure 2. The GEDI Window with Tabs
