Redundant Overview

Note: This tab is only available for redundant projects.
  • When Backend is in-proc, the connection line from NGA manager to backend is always grey.
  • When backend is out-of-proc, the connection line is green when a connection is established and red if there is no connection between the frontend and the backend.
  • When there is no connection between the projects of a redundant project, the elements of the unreachable project will be hidden (their state is not known).
  • For Buffers, see chapter Buffering Parameters

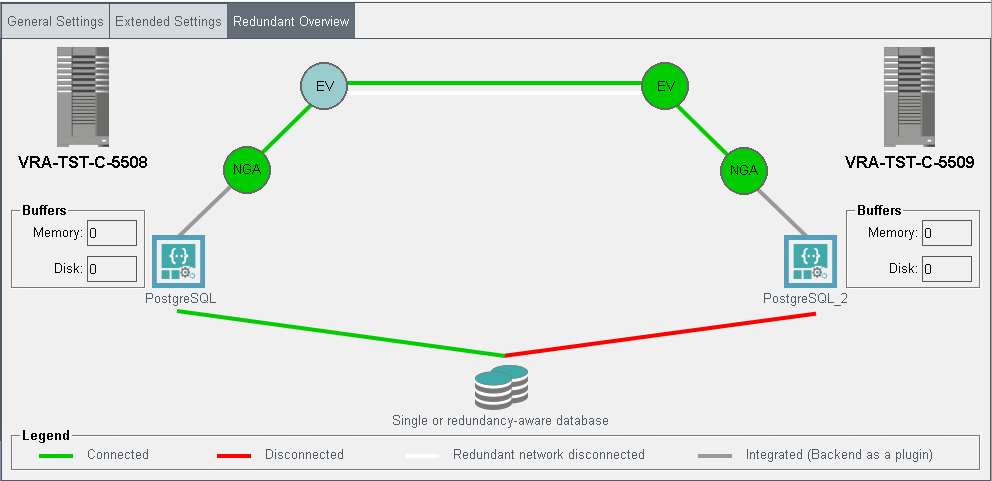

Figure 1. Redundant Overview - Connection to the "win10-1" and no connection to the "win10-2"

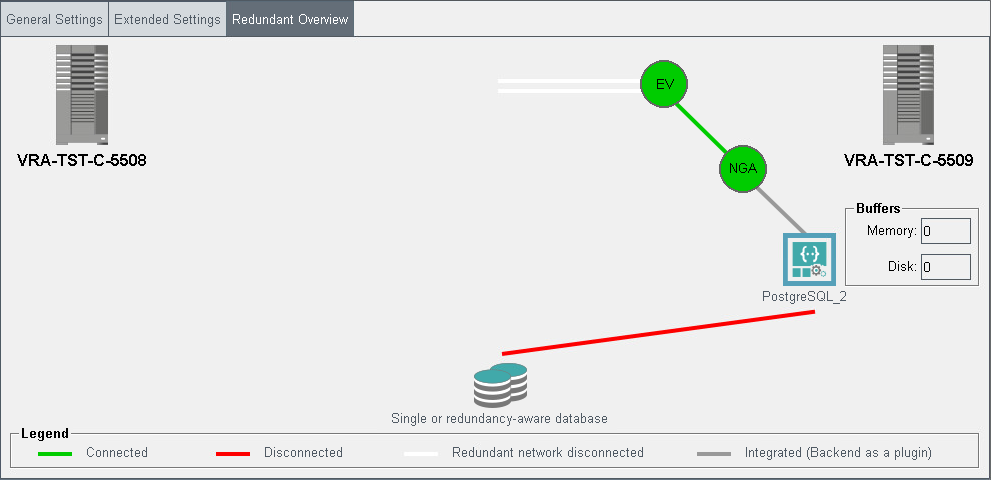

Figure 2. Redundant Overview - No connection to "Win10-2" and disconnected from "win10-1"
