Properties correction values panel

Clicking on the Correction value button or opening the panel with the selector automatically opens the child panel for the correction values settings.

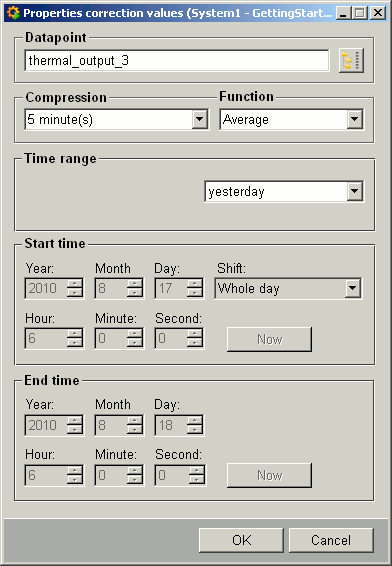

Figure 1. Settings for the Correction Values Panel

Explanation of the different panel elements:

Through this button, you select a data point (element) or enter a data point in the associated text field. Confirm any data point entered by hand with the RETURN key.

Compression and Function : If the selected data point is of the type AC (with preset archiving and compression), select the associated interval from the Compression combo box and the functions linked to this interval from the Function combo box.

Data points that are not of the type AC (that is, without preset archiving and compression) are simply displayed in the Data point text field at the top.

Time range : Select the time range you require for the data readout from this combo box.

Start/End : Set the fixed start and end times for the time range chosen.

Now:Sets the time to the current system time.

Cancel: Closes the panel.

OK: Accepts the settings and starts retrieving data from the database.
