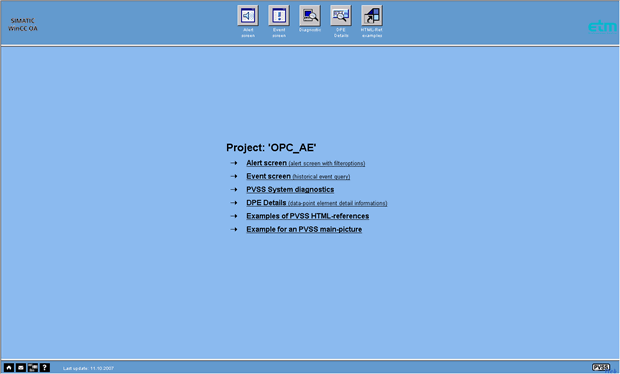

Start-up screen of the HTTP Server

Enter the name of the computer (or http://localhost) in the browser window address box to display the login prompt. After successfully logging in to the HTTP Server and entering the desired language on the start page, the start-up screen will be displayed.

Use the buttons in the header frame (button.html) to select the following functions:

Alert panel (with filter options)

Event panel (with filter options)

WinCC OA diagnostics page

Data point element details

Examples of HTML references

The main frame (center of the browser window, main.html) displays the pages selected in the header frame.

The footer frame (footer.html) contains the following links:

• back to the start page (see above)

• email contact to a page administrator

• language selection page

• Online Help (for default pages only when WebHelp has been installed, that is, by installing the single HTML files. The help directory can be defined in the config file config.http).

The base HTTP Server settings are specified in the HTTP config file <proj_path>/config/config.http (see Base HTTP configuration).

If you want to change the font color of the start up screen, overwrite the colors (font color) in the file "chooseLang.htmlRef" under wincc_oa_path/data/http/start/chooseLang.htmlRef.
