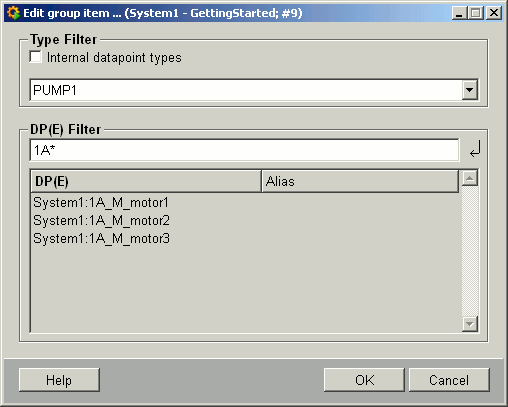

Define DP(T) filter

The +DP(T)-filter button opens a panel for defining filters for data points or data point elements. You can select a data point type or data point (and a filter) using wildcards. Associated data points are displayed. Data type and the appropriate filter settings (for example, PUMP1, 1A*) are added to the group administration panel.

• Internal data point types

  Selecting this option also displays the internal data point types in the combo box.

  Combo box with selectable data point types.

• DP(E)-Filter

  Specify data points or identifiers using wildcards. After pressing ENTER to confirm, the existing data points matching the filter settings are displayed in the list.

  Note:

  When defining an dp(e) filter, the following characters are not allowed: semi-colon ";", comma ",", right or left square brackets "[ ]", right or left curly brackets "{ }", blank space, question mark "?", backslash "\", percent sign "%", right or left brackets "( )" dollar symbol "$". Otherwise an error message is displayed.

• OK

  Applies filter settings in the input box to the group definition panel and adds them to the list of filters.

• Cancel

  Exits the panel.

• Help

  Opens the description in the online help.
