"colorTolOK"

Defines the bar color when the value lies within the permitted tolerance.

Synopsis

setValue(string shape, "colorTolOK", string color);

getValue(string shape, "colorTolOK", string &color);

shape.colorTolOK(string color);

Parameters


Parameter	Description
shape	Name of the object
color	Color string

Description

This attribute is used to specify the color for values that lie within the tolerance limits.

Example

see "refOrigin"

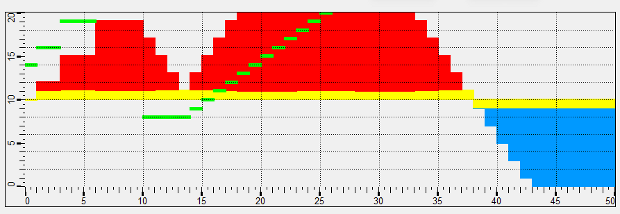

Abbildung 1. The Color of the Values that lie within the Tolerance Limits was set to yellow

Assignment

Bar trend
