"colorTolHigh"

Defines the bar color for values that exceed the upper tolerance value.

Synopsis

setValue(string shape, "colorTolHigh", string color);

getValue(string shape, "colorTolHigh", string &color);

shape.colorTolHigh(string color);

Parameters


Parameter	Description
shape	Name of the object
color	Color string

Description

This attribute can be used to define the color for values that have exceeded the upper tolerance limit.

Example

see "refOrigin"

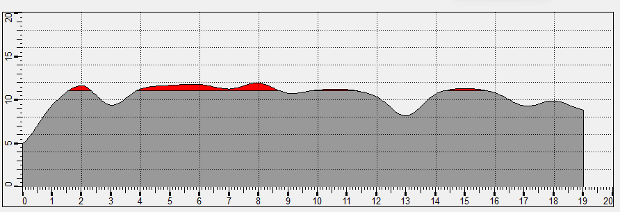

Abbildung 1. The Color of Values that exceed the upper tolerance limit was set to red

Assignment

Bar trend
