Gauge Widget

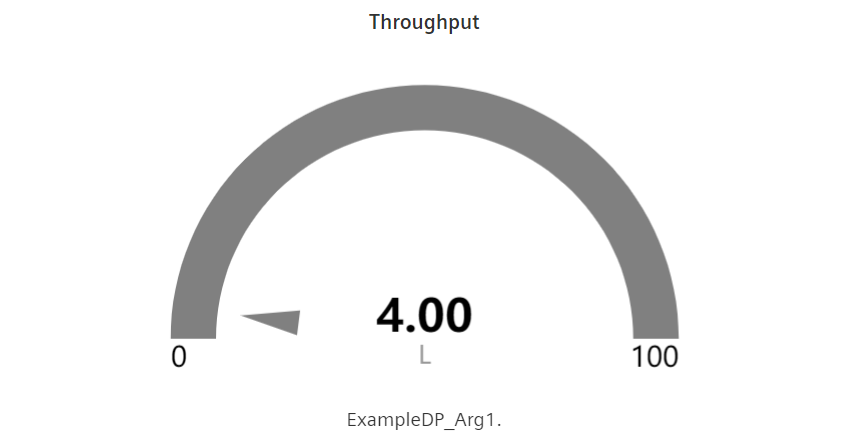

The Gauge shows the data point value via the needle deflection.
Datatypes
| Datatype | Supported? |
|---|---|
| int | ✓ |
| uint | ✓ |
| float | ✓ |
| long | ✓ |
| ulong | ✓ |
| string | ✗ |
| char | ✗ |
| bool | ✗ |
Settings
The Settings of the Gauge widget allow you to choose the data point value format, the unit and the value range. These settings can either be imported from WinCC OA, set manually or deactivated completely. The unit can also be manually chosen from an overview of SI units.
