Advanced Settings

The advanced settings of the configuration panel of the BACnet driver are located under: System Management > Driver > BACnet Driver > Tab "Advanced Settings".

The panel allows you to set additional options and special behaviors for the BACnet driver.

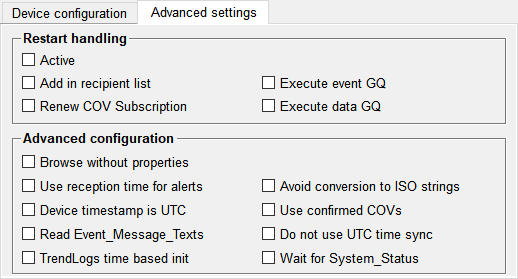

Figure 1. Advanced Settings of the BACnet Driver

Restart Handling

The area "Restart Handling" allows to specify how the driver shall behave on restart. Following options are available.

  • Active: Activates the restart handling function

  • Add in recipient list: Adds the driver to the recipient list of the restart notification

  • Renew COV Subscription: Executes a renewal of the COV subscriptions.

  • Execute event GQ: Driver executes an event GQ.

  • Execute data GQ: Driver executes an data GQ.

Advanced configuration

Browse without properties
Use reception time for alerts
Device timestamp is UTC
Read Event_Message_Texts
Avoid conversion to ISO strings
Use confirmed COV
Do not use UTC time sync
TrendLogs time based init
The Time-based TrendLog initialization can be necessary if a device has problems with the standard mechanism using BACnet ReadRange service with negative sequence count.
Wait for System_Status
The option is required for devices which enable BACnet communication before they establish their internal data model after a restart. For such devices a COV registration error occurs after the connection establishment if this option is not used.
