Connection

This tab allows to define general connection parameters like host and port number. Depending on the configuration you may have to define these parameters for a redundant connection too.

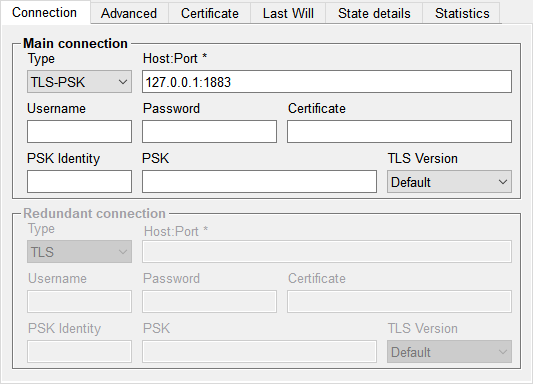

Figure 1. Connection tab

Type

Allows to define the connection type.

  • Unsecure
  • TLS
  • WebSocket
  • TLS-PSK

MQTT Broker - Host:Port

In this field the connection information of the broker can be specified. For the most protocol types this entry specifies a hostname and a port number. For WebSocket connection type this is a URL as can be seen in the example below.

  • Unsecure: 127.0.0.1:1883
  • TLS: secureBroker.com:8883
  • WebSocket: ws://www.example.com/mqtt
Note: Note that for secure websocket the URL starts with wss.

Username

User name to access the broker, if necessary.

Password

Password to access the broker, if necessary.

Certificate

If connection type TLS is defined, the certificate of the broker that the client shall trust must be entered here. The specified certificate file is retrieved from the directory specified by the config entry certPath.

In case of connection type WebSocket no certificate must be defined. However, the broker's root certificate must be installed on the client computer as trusted certificate. For how to install a certificate into the operating system trust list, see https://learn.microsoft.com/en-us/skype-sdk/sdn/articles/installing-the-trusted-root-certificate.

Important: In some cases, certificates created with other tools than openSSL might lead to connection issues, and therefore it is recommended to use openSSL to create all certificates related to your project. An easy method to generate certificates is using the Panel for SSL Certificates.

PSK Identity

The identity that should be used for the pre-shared key defined within the PSK textfield.

Remember: The option is only used if the connection type TLS-PSK is used.

PSK

The pre-shared key that is used for the connection and stored as encrypted string.

Remember: The option is only used if the connection type TLS-PSK is used.

TLS Version

The TLS version that should be used for the connection.

Remember: The option is only used if the connection type TLS-PSK is used.
Restriction: Due to restrictions of the Qt-Framework the TLS version 1.3 cannot be used for PSK based communication.
