"startAngle"

Defines at what angle the chart display should start. This setting is used in Donut, DonutBars and Radar.

Synopsis

void shape.startAngle(float startAngle);

Parameters

Parameter Description
startAngle start angle; from 0 to 360 degrees

Description

Defines at what angle the chart display should start. This setting is used in Donut, DonutBars and Radar. The angle has a range from 0 to 360 degrees and starts with 0 at the 3-o'clock position counterclockwise.

Example

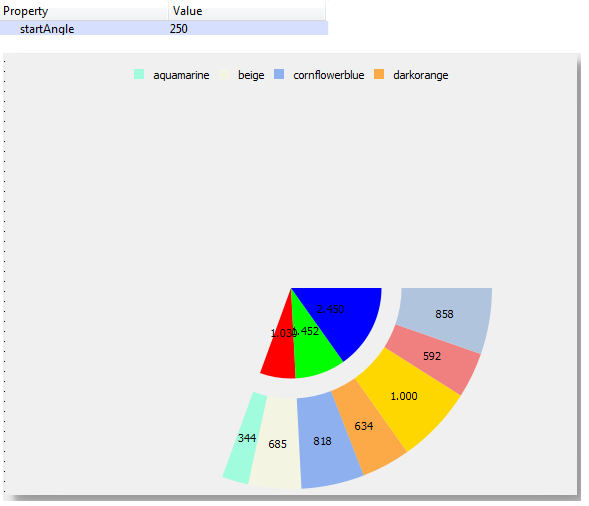

In this example the property "startAngle" was set to 250 degrees.

Abbildung 1. Donut-chart with start angle at 250 degrees

Assignment

Chart.ewo
