"setItemExploded"
Defines in the charttypes Donut and DonutBars if an item should be shown shifted outwards.
Synopsis
void shape.setItemExploded(int series, int idx, bool exploded)
Parameters
| Parameter | Description |
|---|---|
| series | number of the series |
| idx | index of the item, starting at 0 |
| exploded |
TRUE = shifted outwards FALSE = not shifted outwards |
Description
Defines if an item is shown „exploded“, which is: moved outwards by the property value "explosionOffset" in pixel. Note that you must take care about the space between Donut rings if exploded items shall be shown in inner rings by setting an appropriate seriesSpacing property value.
Example

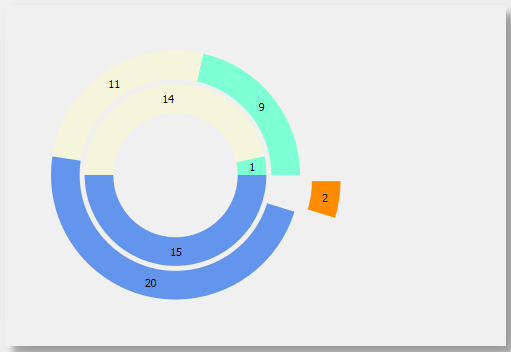

In this example the item with the value 2 is shifted outwards by 41 pixel.
main()
{
dyn_float one;
one[1] = 9;
one[2] = 11;
one[3] = 20;
one[4] = 2;
this.addSeries(one);
this.setSeriesFillColor(0, "{180,255,170}");
dyn_float two;
two[1] = 1;
two[2] = 14;
two[3] = 15;
this.addSeries(two);
this.setSeriesFillColor(1, "{52,225,255}");
this.setSeriesName(1, "Blue");
this.setSeriesName(0, "Green");
this.explosionOffset = 41;
this.setItemExploded(0, 3, TRUE);
}
