"defaultLineType"

Defines the line type used as default when a new series is created.

Synopsis

void shape.defaultLineType(string type);

Parameters

Parameter Description
type line type used per default

Description

Defines the line type used as default when a new series is created. At charttypes with filled items (for example Donut), it defines the type of the border.

Example

In the following example the borders of the bars were set to a dash-dot-line. To see it better, the width was also changed to 2.

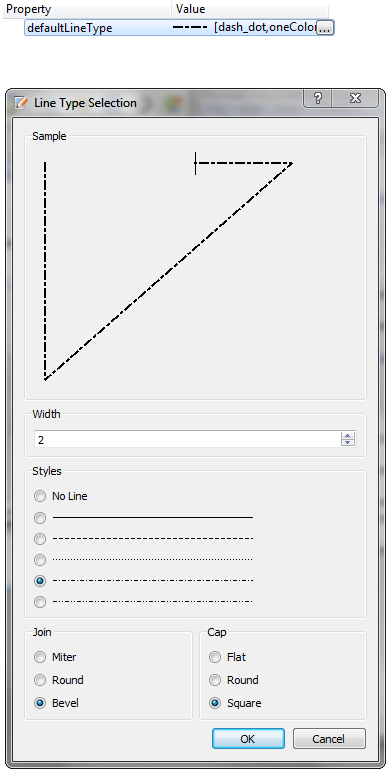

Abbildung 1. Linetype selector

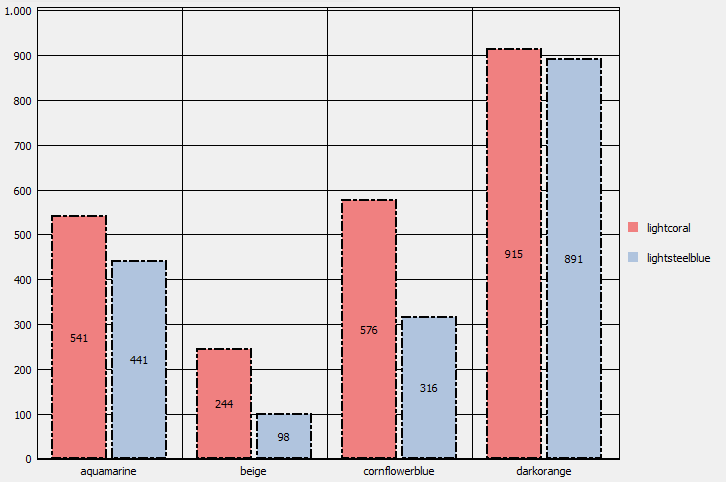

Abbildung 2. barchart with dash-dot.border

Assignment

Chart.ewo
