System Use Notification Panel

This chapter describes the "System Use Notification" panel. You can use the panel to create instructions that are shown when a user logs into the WinCC OA system.

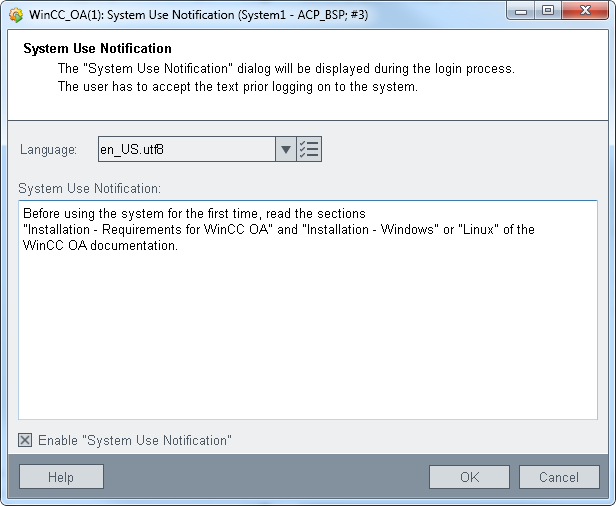

Figure 1. System Use Notification Panel

Note that in order to display the instruction, enable the check box - see figure above.

The system use notification is saved in the internal data point type _SystemUseNotification - see figure below. Since an instruction was saved for both, English and German, two lines are saved in the "Text" element.

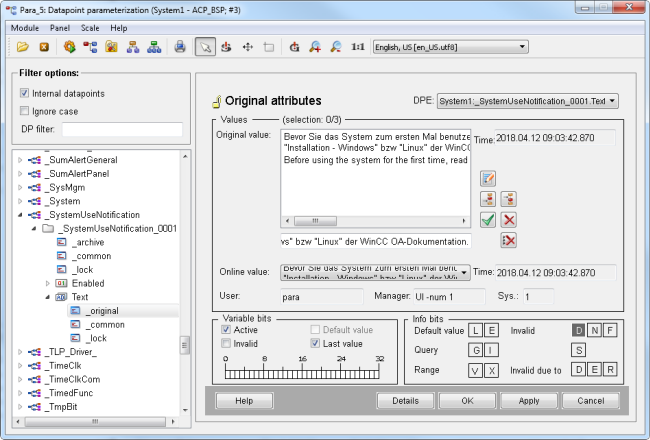

Figure 2. PARA Module - _SystemUseNotification data point type and data point _SystemUseNotification_0001

The system use notification is shown after logging in via the login panel.

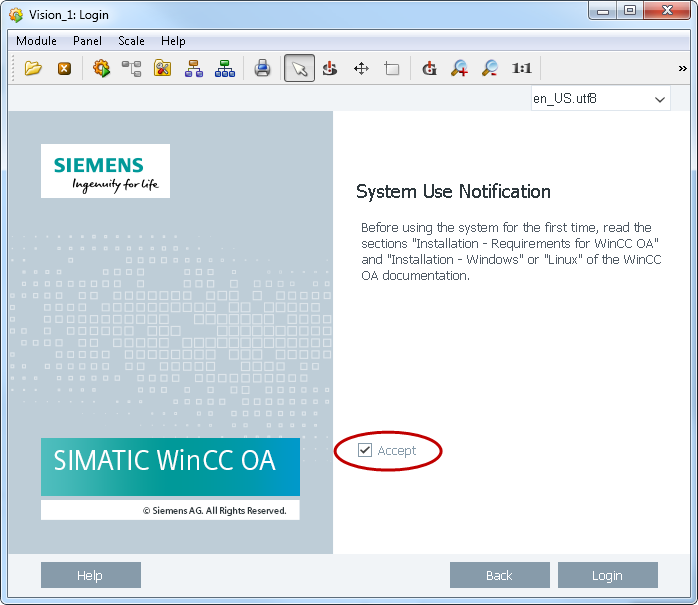

Figure 3. Login panel

Accept the notification by activating the check box.

Figure 4. System Use Notification
