ssc_removeKPINodes()
The function removes plant model nodes that are linked to a KPI instance.
Synopsis
void ssc_removeKPINodes(string kpiDPName);
Parameters
| Parameter | Description |
|---|---|
| kpiDPName | The KPI definition DP name. |
Return Value
-
Description
The function removes plant model nodes that are linked to a KPI instance.
Example

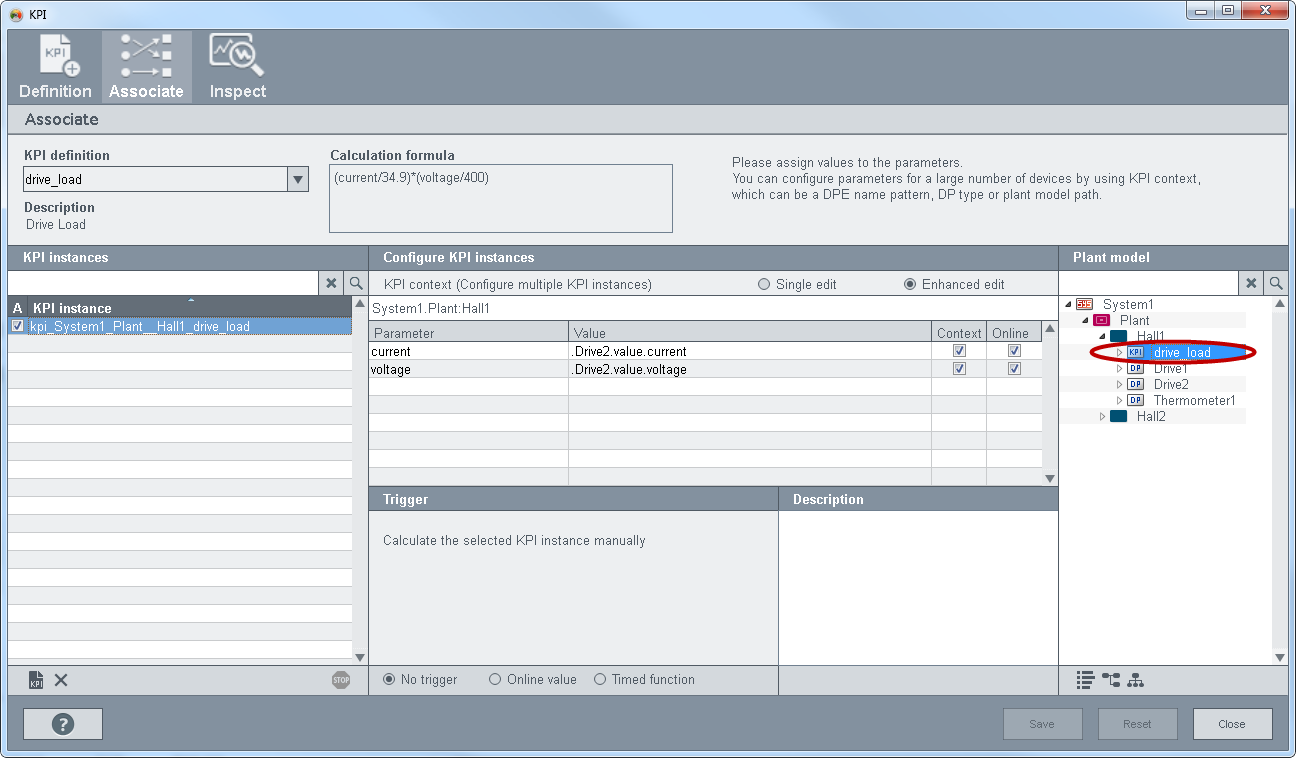

This example shows how to remove plant model nodes linked to KPI instances. In this example the KPI instance "drive_load" is removed (see figure below). A KPI node is created for a plant model when you save the KPI instance configuration where plant nodes are used (see figure below).
main()>
{
ssc_removeKPINodes("kpi_System1_Plant__Hall1_drive_load");
}Assignment
Availability
SmartSCADA
