Requirements and Installation

Requirements

Visual Studio 2015 installed
Net Framework 4.5.1 or higher installed
You need a license for the C# API. SeeLicensing

Installation

Install Visual Studio 2015 and Net Framework 4.5.1 or higher.
Install WinCC OA. During the installation, activate the check box "API". The API is installed in the wincc_oa_path/api directory by default. You can also specify another directory, for example, C:/.

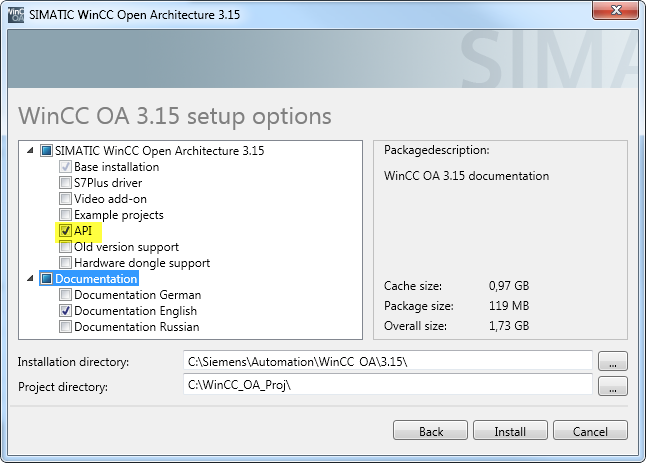

Figure 1. WinCC OA installation/ API installation
Set the environment variable API_ROOT to the directory in which the API was installed (wincc_oa_path/api).
CAUTION:
C# API managers must be recompiled after installing a new patch or a new version.
