Internal data points

Two internal data points exist for saving the settings of the authorization check plug-in:

_AuthorizationCheck
_AuthorizationCheckManager

General settings are saved in the data point “_AC_General” and the manager specific settings in the “_ACM_<Managertyp>”.

_AuthorizationCheck


Data point element	Type	Description
_AC_General.CNSUserDataKey	String	Under this key the authorization of the Authorization Check Plug-in is saved. The default value is OA:ACP. The key should only be specified once. You can specify the key on the Views tab of the Authorization Check Plug-in under "Global settings" -> "CNS key".
_AC_General.DefaultDpPermission	Unsigned	Standard authorization. Contains the standard authorization for all data points that were not assigned to a plant model node and are not included in the public data point list. The standard authorization is set on the Views tab of the authorization check plug-in wizard. Three authorizations can be selected. 0 Block 1 Read 2 Write
Views.Names	Dyn_string	These views are used for the plug-in.
Views.UserPermissionBitPattern	Dyn_string	Contains the list of user bit patterns for views on the Views tab of the wizard. For user bits, see chapter authorization levels. CAUTION! The names of the views, bits of the views and roles of the views must contain the same number of values. Consider this especially when changing values in the PARA manually.
Views.Role	Dyn_string	Contains the roles that can be created and assigned on the Views tab of the Authorization Check Plug-in wizard via the "Role" column.

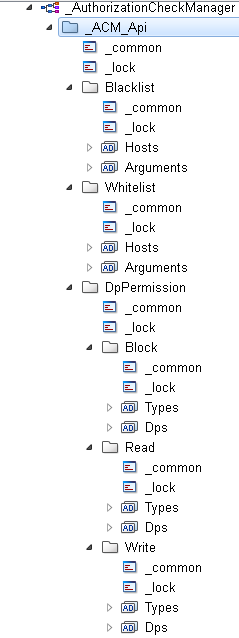

_AuthorizationCheckManager

All manager nodes possess the same structure. The structure is described in the following:


Datapoint element	Type	Description
_ACM_Api.Blacklist.Hosts	Dyn_string	Host names of the black list on the "Lists" tab of the authorization check plug-in wizard. CAUTION! The hosts and arguments must contain the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.Blacklist.Arguments	Dyn_string	Arguments (options) for the managers of the blacklist on the "Lists" tab. of the authorization check plug-in wizard. CAUTION! The hosts and arguments must contain the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.Whitelist.Hosts	Dyn_string	Host names of the whitelist on the "Lists" tab of the authorization check plug-in wizard. CAUTION! The hosts and arguments must contain the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.Whitelist.Arguments	Dyn_string	Arguments (options) for the manager of the whitelist on the "Lists" tab of the authorization check plug-in wizard. CAUTION! The hosts and arguments must contain the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.DpPermission.Block.Types	Dyn_string	Blocked data point types on the DPE tab of the authorization check plug-in wizard. The data point types cannot be shown. CAUTION! The types and Dps must have the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.DpPermission.Block.Dps	Dyn_string	Blocked data points on the DPE tab of the authorization check plug-in wizard. The data points cannot be shown. CAUTION! The types and Dps must have the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.DpPermission.Read.Types	Dyn_string	Read rights for the data point types on the DPE tab of the authorization check plug-in wizard. CAUTION! The types and Dps must have the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.DpPermission.Read.Dps	Dyn_string	Read rights for the data points on the DPE tab of the authorization check plug-in wizard. CAUTION! The types and Dps must have the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.DpPermission.Write.Types	Dyn_string	Read rights for the data point types on the DPE tab of the authorization check plug-in wizard. CAUTION! The types and Dps must have the same number of values. Consider this when changing the values of these data points via PARA.
_ACM_Api.DpPermission.Write.Dps	Dyn_string	Write rights for the data points on the DPE tab of the authorization check plug-in wizard. CAUTION! The types and Dps must have the same number of values. Consider this when changing the values of these data points via PARA.
