Device Management

The Device Management allows you to define which WinCC OA UI connections (mobile application and Desktop UI) are allowed to connect to your project. Additionally a direct overview over the available licenses and currently connected devices is given.

The Device Management panel is located inside of the System Management > Settings > Device Management.

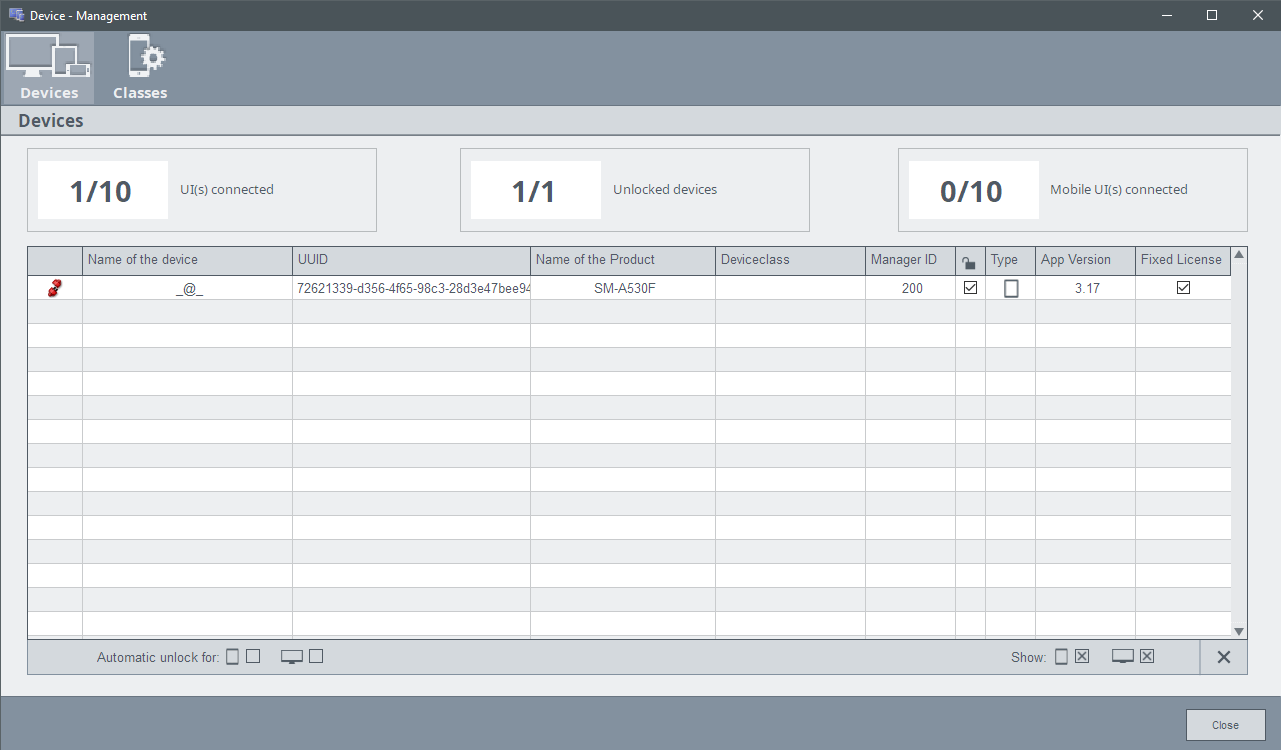

Figure: WinCC OA Device Management

Device Information

For each device a list of information is stored inside of the device management.

Connectionstatus

Current connection state:

  • Connected () - The device is currently connected to the project

  • Not connected () - The device is currently not connected to the project

Name of the Device Name of the device that has been configured inside of the bluetooth settings of the device (for the mobile Application). For Desktop UIs the host name of the device is stated.
UUID

Universal Unique Identifier; A unique name to distinguish between the devices. Can be found inside the mobile application under "Information" > "Device Information".

NOTE

Every new installation of the mobile application creates a new UUID. This does not apply to updates!

NOTE

For each Desktop UI a separate UUID is generated per user.

Name of the product A translation between the product code and a human readable name is done within the device list which is stored under data/ device_models.txt. This list will be updated regularly with the newest patches
Deviceclass The device class that should be used for the displayed panels (see Device Classes).
Manager ID Manager ID assigned to this device. Unlike the Desktop UI the mobile application uses a fixed defined manager ID.
Unlocked State () Defines if a device is allowed to connect to the project. Access can be granted and revoked any time. If a device is locked during an active connection the device will be disconnected from the system.
App Version Current mobile application version that is used to connect to the project.
Fixed UI License

You can assign a fixed UI license to specific mobile or desktop UIs on which WinCC OA is running. This guarantees that specific UIs always get a license from the Event Manager. See alsoFixed UI and PARA Licenses.

A fixed UI license can only be assigned when licenses are available. If no license is available, a license cannot be assigned. If a normal UI and fixed UI wait for a license, the fixed UI receives the first available license.

With the debug flag -reportLicense information can be displayed in the log:

WCCILevent0:Fixed licenses in the system:

WCCILevent0: mobile_uifix total reserved: 1 used: 0 free: 1

WCCILevent0: uifix total reserved: 2 used: 1 free: 1

WCCILevent0:Fixed license details:

WCCILevent0: uifix HW: xxxxxxxx Count: 1 Host: "xxxxxxxxxx" (SYS: 1 Ui -num 1 CONN: 1)

WCCILevent0: uifix HW: xxxxxxxxxxxxxxxxxx Count: 1 Not in use

WCCILevent0: mobile_uifix HW: xxxxxxxxxxxxxxxxxx Count: 1 Not in use

Unlock a device

By default a device is not allowed to connect to your project. If a not unlocked device tries to connect to your project a corresponding error message is displayed on the device and a new entry for the device is added to the device management. If the device already tried to connect earlier no new entry is added.

To grant a device access to your project the check box () must be set for the specific device you want to unlock. An already unlocked device can be blocked from accessing your project by removing the checked state of the check box.

License information overview

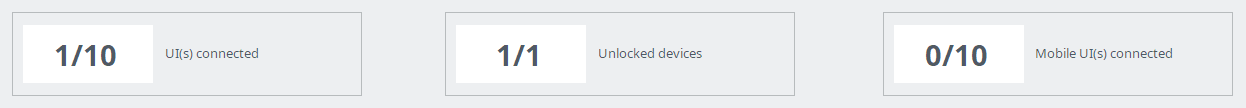

The top area of the device management displays the information on the number of connected UIs, registered devices and connected Mobile UIs.

Figure: License information

  • The number of connected UIs is mapped against the number of available UI Licenses. (e.g.: 1 connected UI uses one of 10 available connections)
  • The number of unlocked devices is mapped against the number of registered devices (i.e. devices shown in the device list). (e.g.: 1 registered device is unlocked)
  • The number of connected Mobile UIs is similarly mapped against the number of available Mobile UI Licenses. (e.g.: no Mobile UI is connected, so 10 connections are available)

Automatic unlocking of devices

To automatically unlock every device which tries to connect to your project the "Automatic Unlock" check box can be used. The automatic unlocking can be separately specified for mobile UI connections and Desktop UI connections.

The usage of an automatic unlocking of devices is only recommended in secured networks!

Figure: Automatic unlocking

Filter View

For improved administration and filtering of connections the view of the listed devices can be filtered between mobile UI connections and Desktop UI connections.

Figure: Filter view
