"showRange" - Element array

Defines the type of display.

Synopsis

setValue(string shape, "showRange", int range);

getValue(string shape, "showRange", int &range);

shape.showRange(int range);

Parameters


Parameter	Description
shape	Name of the object
range	Valid values are: BAR_NONE BAR_MINMAX BAR_S

Description

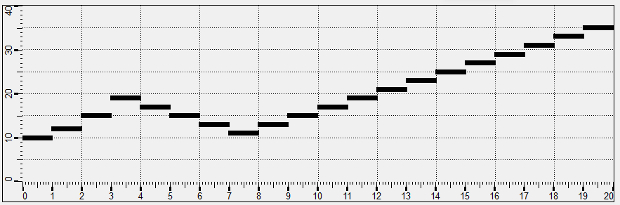

This attribute specifies the type of display using constants whereby BAR_NONE means that the average value is displayed, BAR_MINMAX displays the minimum and maximum values and BAR_S displays the s values (standard deviation).

Example

see "data" - Element array

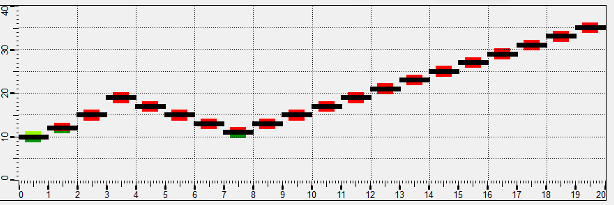

Figure 1. Bar Trend - for the Trend Type "Element Array" only the Average Value (BAR_NONE ) is displayed

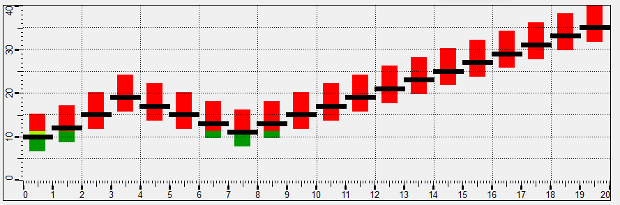

Figure 2. Bar Trend - for the Trend Type "Element Array" the Minimum and Maximum Values (BAR_MINMAX ) are displayed

Assignment

Bar trend
