Create a data point

Data points represent the concrete system components to be controlled by the WinCC OA process control system. The structures of data points are already defined in the data point types.

This chapter shows you how to create new data points and how to change them. The result could look like in the following figure.

The creation of a data point in distributed systems only works in the own system!

The figure below is an example which shows how it looks like after a data point was created.

Figure 1. PARA-Tree with data point filter

Click with the right mouse button on a data point type in the PARA TreeView. The context menu of the PARA Tree looks like the following:

Figure 2. Context menu for creating a data point

You can create a new data point that shows the structure of DPT and holds the standard configs, via the Createdata point.

Refer to nameCheck() for not permitted characters.

For more information about the function of further entries (of the context menu) please refer to chapter Mass configuration. You can describe every element of a data point with further configs. In order to do this click with the right mouse button on a data point element and choose the desired entry from the context menu.

Figure 3. Context menu for inserting further configs

Via the entry Insert multiple configs ... you can add several configs to an element from a selection dialog by activating the check boxes. With Insert config you select only one config and the element should subsequently be extended with it.

To delete a config, click with the right mouse button on a specific config and select the entry Delete config.

The standard configs that are added automatically when creating a new data point, cannot be deleted.

Example: How to create a data point

In order to add a data point, a data point type has to exist.

  1. Click with right mouse button on a DP-type, e.g. Valve and select Create data point.

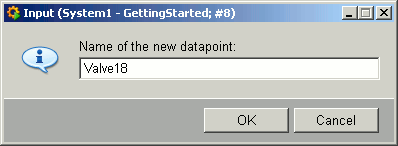

  2. Another dialog for entering a new DP name is displayed. Enter a name (e.g. Valve18) and confirm your input with OK button.

    Data point names must only contain characters allowed by nameCheck().

  3. The structure of your data point corresponds to the chosen data point type, e.g. Valve and has the default configs _common and _lock and _original.

  4. Insert further data points, e.g. Valve18.

    Figure 4. Create a new data point
