"rulerTimeLabelVisibility"

The attribute "rulerTimeLabelVisibility" shows the time for a curve value of a trend ruler.

Synopsis

setValue(string shape, "rulerTimeLabelVisibility",int area, bool visible);

getValue(string shape, "rulerTimeLabelVisibility", int area, bool visible);

shape.rulerTimeLabelVisibility(int area, bool visible);

Parameter

Parameter Description
area The trend area for which the times for the curve values are shown.
visible

1 = The time for the curve value of a ruler is shown

0 = The time for the curve value of a ruler is not shown

Description

The attribute "rulerTimeLabelVisibility" shows the time for a curve value of a trend (curve) ruler.

In order to use rulers, set the config entry "trendEnableCurveRulers" in the [ui] section of the config file. You can set rulers by clicking a curve. You can, however, also use the attribute "curveRulers".

Via the attribute "maxRulerCount" you can specify how many rulers can be used for a trend area.

Example

The following example shows the time for the curve value of the ruler. The time is shown for the first trend area (area 0).

main()
{
  TREND1.rulerTimeLabelVisibility(0,1);
}

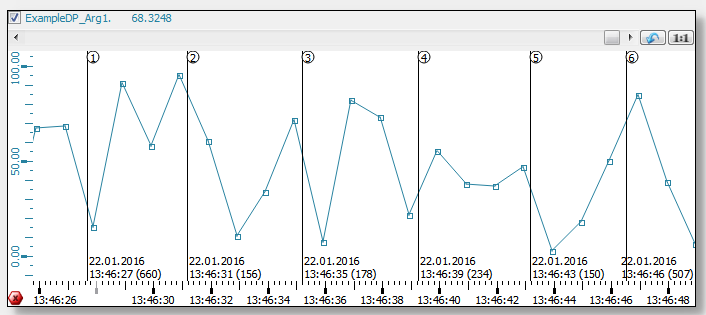

Figure 1. Trend with several rulers and ruler times
Figure 2. Trend with several rulers and ruler values and times

Use the attribute "rulerValueLabelVisibility"to set the values.

Assignment

Trend
