"areasClosable"

With the trend attribute "areasClosable" you can close all trend areas.

Synopsis

shape.areasClosable(bool closable);

Parameter

Parameter Description
closable Close a trend area (1).

Description

When set to true, all areas show a close button in the upper right corner.

When you click the button, the clicked area is removed from the trend widget.

Example

This example shows a close button for each trend area and you can close all trend areas.

main()
{
  TREND2.areasClosable(TRUE);
}

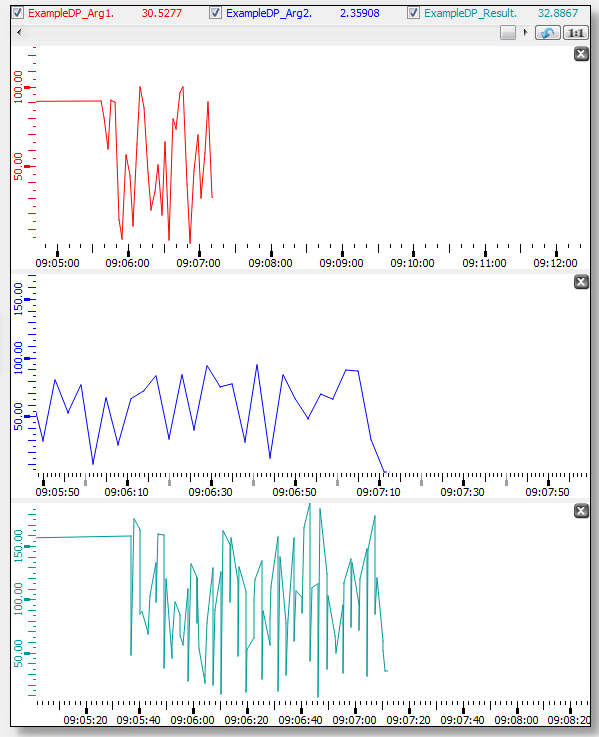

Figure 1. Trend areas with close buttons

Assignment

Trend
