"tickPosition"

Defines where the position marks of a slider are to be drawn.

Synopsis

shape.tickPosition(string t);

Parameter


Parameter	Description
shape	Name of the object.

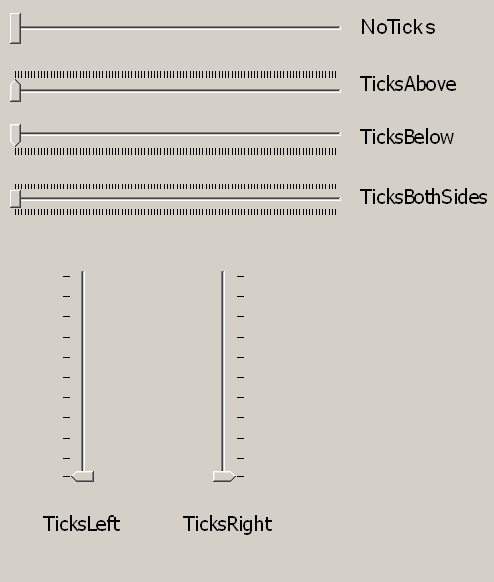

t	"NoTicks" - do not draw any ticks. "TicksBothSides" - draw position marks on both sides of the groove. "TicksAbove" - draw position marks above the (horizontal) slider "TicksBelow" - draw position marks below the (horizontal) slider "TicksLeft"- draw position marks to the left of the (vertical) slider "TicksRight" - draw position marks to the right of the (vertical) slider

Description

Defines where the position marks of a slider are to be drawn.

Example

The position marks are drawn above the horizontal slider .

main()
{
  this.tickPosition("TicksAbove");
}

Assignment

Slider
