"scrollerType"

Allows to define the behaviour if more tabs exist than can be displayed.

Synopsis

setValue( string shape, "scrollerType", string type);

getValue( string shape, "scrollerType", string type);

shape.registerClosable( string type);

Parameter

Parameter Description
shape Name of the object
type

Der displaying type that shall be used. Following options are available:

  • Popup => Displays a pop-up for the selection of the tabs.

  • ScrollButtons => Displays arrow buttons for the navigation between tabs. (default)

  • None => Displays no navigation elements.

Description

With stating the wanted displaying type the behaviour of the tab control can be defined if the available space is not sufficient to display all tabs.

Example

Following example shows the different settings on multiple tab controls.

main()
{
  TAB1.scrollerType("Popup");
  TAB2.scrollerType("ScrollButtons");
  TAB3.scrollerType("None");
  for(int i = 1; i <= 10;i++)
  {
    langString s = makeDynString("Tab " + i, "Tab" + i);
    TAB1.insertRegister(i);
    TAB1.registerHeader(i,s);
  }
  for(int i = 1; i <= 10;i++)
  {
    langString s = makeDynString("Tab " + i, "Tab" + i);
    TAB2.insertRegister(i);
    TAB2.registerHeader(i,s);
  }
  for(int i = 1; i <= 10;i++)
  {
    langString s = makeDynString("Tab " + i, "Tab" + i);
    TAB3.insertRegister(i);
    TAB3.registerHeader(i,s);
  }
}
Abbildung 1. Tab and ScrollButtons (arrow buttons for the navigation between the tabs)

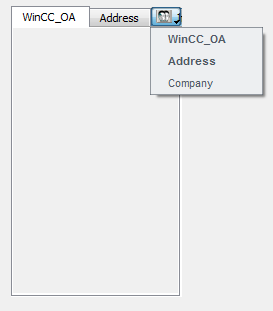

Abbildung 2. Tab and a Pop-up (Use a pop-up to select tabs)

Assignment

Tab
