HTML Widget

The HTML widget can be used to display an HTML file within the Dashboard.

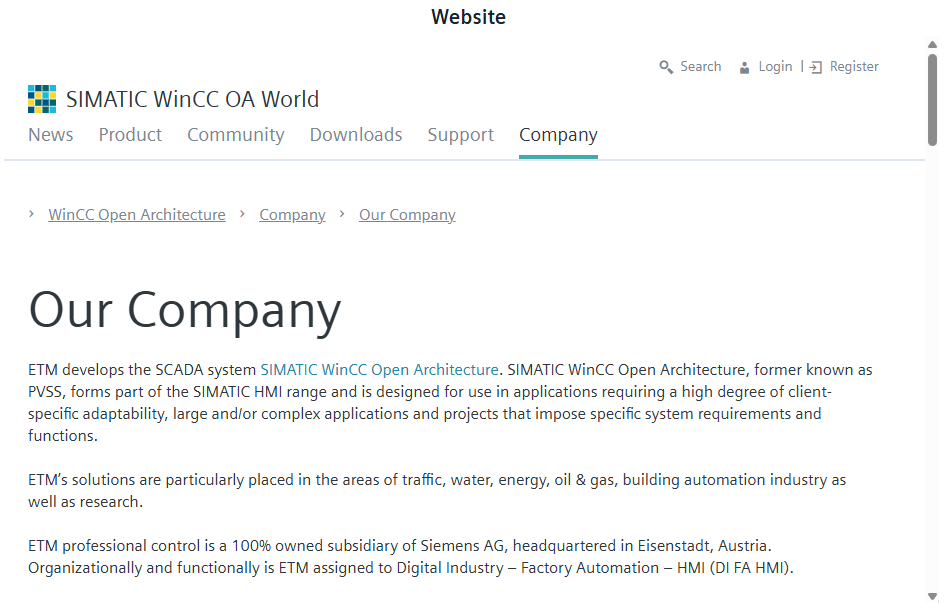

Figure 1. HTML Widget

Settings

The HTML Widget can have the custom appearance settings of custom title, colors and controls.

Content

The URL of the HTML file to be displayed can be chosen via the drop-down-selector or entered manually. The address to this file must be reachable within the current environment for the file to be displayed.

Advanced Settings

The HTML Widget can be set to allow for expansion to fullscreen. Set the check-mark if you want to allow the website to use full screen mode within the widget. Enabling this will not run the widget in full screen mode, but will provide the option for the website. For example, if you want to nest a YouTube video and make it run full screen, using the check-mark here would cause the video to go full screen to maximize it. Not using the option will cause the video be maximized in the space for the widget.

The Sandbox parameters allowed for the Widget can be chosen:

The sandbox mode allows you to use advanced options to control the restrictions applied to the content embedded in the HTML widget. Check the sandbox checkbox to enable the sandbox mode. If the sandbox is set to false, the HTML widget loses the sandbox attribute. For more information on the available sandbox options, see the Mozilla documentation https://developer.mozilla.org/en-US/docs/Web/HTML/Element/iframe#attr-sandbox.

Additionally, one Referrer Policy can be chosen for the widget. It specifies which referred information to send when fetching the HTML file. For information on available options, see the Mozilla documentation https://developer.mozilla.org/en-US/docs/Web/HTML/Element/iframe#attr-referrerpolicy. This can be any one of:

no-referrer
no-referrer-when-downgrade
origin
origin-when-cross-origin
same-origin
strict-origin-when-cross-origin (default value)
unsafe-url
