pmonGetResetMinutes()

Synopsis

int pmonGetResetMinutes(int idx);

Parameters

Return value

The function pmonGetResetMinutes() returns the reset start counter minutes set for a WinCC OA manageror in the event of errors, -1.

Description

The function pmonGetResetMinutes() returns the reset start counter minutes set for a WinCC OA manager

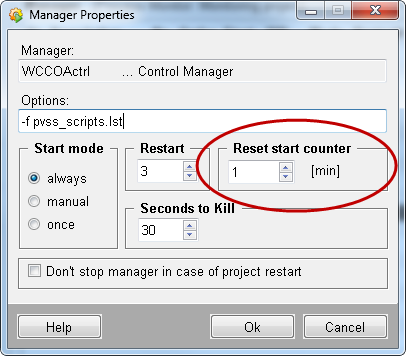

Figure: WCCOActrl-Manager - Manager Properties - Reset start counter

NOTE that the function can only be used on a local computer. A remote UI cannot query the PMON of a server.

EXAMPLE

In the following example, the names as well as the reset counter minutes for WinCC_OA managers are returned and output.

1. main(mapping event)


   {


     string pName;


     int i, reMinit;


     for (int i = 0; i < pmonGetCount(); i++)


     {


      reMinit = pmonGetResetMinutes(i);


      pName = pmonGetName(i);


      DebugN("Manager name: ", pName, "Reset start counter minutes:", reMinit);


     }


    }

The function outputs the names as well as the reset minutes for WinCC_OA managers as follows:

WCCOAui2:["Manager name: "]["WCCILpmon"]["Reset start counter
                minutes:"][1]

WCCOAui2:["Manager name: "]["WCCILdata"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCILevent"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCILproxy"]["Reset start counter minutes:"][2]

WCCOAui2:["Manager name: "]["WCCOActrl"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCILsim"]["Reset start counter minutes:"][1]

WCCOAui2:["Manager name: "]["WCCOAui"]["Reset start counter minutes:"][3]

WCCOAui2:["Manager name: "]["WCCOActrl"]["Reset start counter minutes:"][2]

Assignment

PMON functions.

Availability

UI
