VIDEO_OA_openChildScreenLive()

Opens a live image as a child panel in the opened module.

Synopsis

void VIDEO_OA_openChildScreenLive(string sObject);

Parameters


Parameter	Description
sObject	Camera data point

Return Value

None.

Errors

Missing or wrong arguments

Description

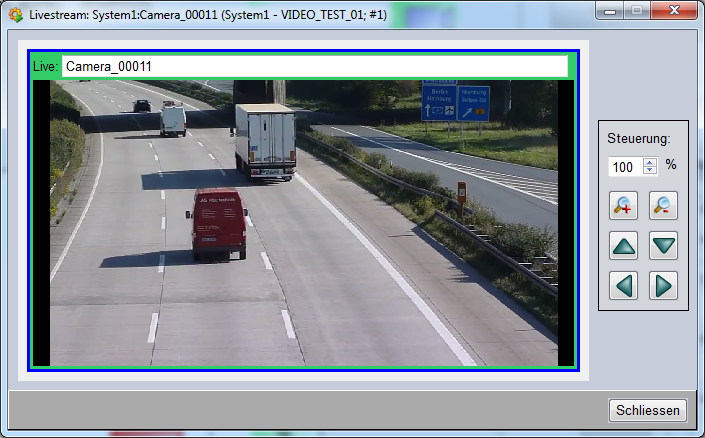

The option "Display live image" opens the following window:

The default live stream of the user interface will be shown. If the camera contains a PTZ controller, it will be shown on the right next to the live stream.

EXAMPLE

main()
{
  VIDEO_OA_openChildScreenLive("Camera_00011");
}

Assignment

Video functions

Availability

UI, CTRL
