VIDEO_OA_openNoPermission()

Opens an information window. The window informs about the required authorization level.

Synopsis

void VIDEO_OA_openNoPermission(permKey="");

Parameters


Parameter	Description
permKey	Authorization level (perm_1 until perm_21, see also VIDEO_OA_getUserPermission)

Return Value

None.

Errors

None.

Description

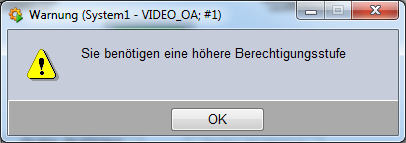

The function opens a warning window with the following content:

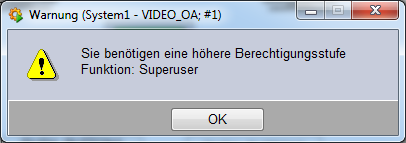

If you pass a valid authorization keyword by using the parameter permKey, the queried function will be shown as additional information in the warning window.

EXAMPLE

main()
{
  VIDEO_OA_openNoPermission("perm_1");
}

Assignment

Video functions

Availability

UI, CTRL
