pmonGetState()

Synopsis

int pmonGetState(int idx);

Parameters

Return value

The function pmonGetState() returns the manager state of a WinCC OA manager or in the event of errors, -1.

Description

The function pmonGetState() returns the manager state of a WinCC OA manager. The state is shown in the WinCC OA console.

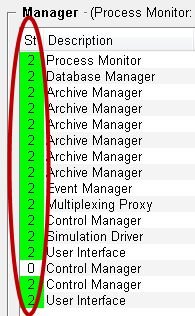

Figure: WinCC OA console and manager states

NOTE that the function can only be used on a local computer. A remote UI cannot query the PMON of a server.

EXAMPLE

In the following example, the names as well as the manager states of WinCC_OA managers are returned and output.

main(mapping event)
{
  string pName;
  int i, pState;

  for (int i = 0; i < pmonGetCount(); i++)
  {
    pState = pmonGetState(i);
    pName = pmonGetName(i);
    DebugN("Manager name: ", pName, "Manager state:", pState);
  }
}

The function outputs the names as well as the states of the managers as follows:

WCCOAui2:["Manager name: "]["WCCILpmon"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCILdata"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCILevent"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCILproxy"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOActrl"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCILsim"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAui"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOActrl"]["Manager state:"][0]
WCCOAui2:["Manager name: "]["WCCOActrl"]["Manager state:"][2]
WCCOAui2:["Manager name: "]["WCCOAui"]["Manager state:"][2]

Assignment

PMON functions.

Availability

UI
