I/O Counter

The I/O Counter panel shows the complete number of I/Os for each driver instance.

The panel can be accessed via System Management > Drivers > I/O Counter.

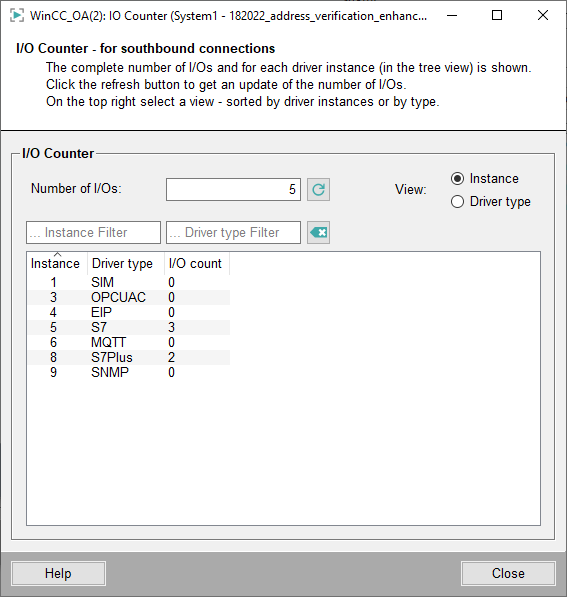

Figure 1. I/O Counter panel - filtered to instance

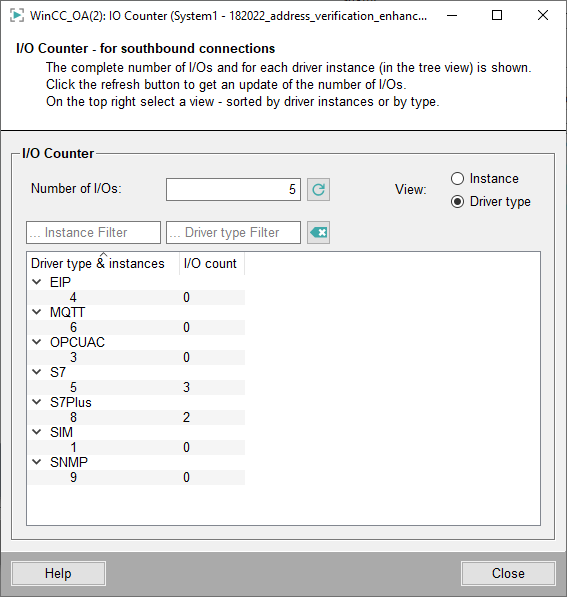

Figure 2. I/O Counter panel - filtered to driver type

The panel can be viewed according to instances or driver types. The I/Os can then be filtered according to instance or driver type.
