Requirements and Installation

Requirements

The following software is required to develop WebUI Runtime applications:


Software	Supported version
Node.js®	22 LTS
npm	10 or later
IDE	Visual Studio Code recommended, but any code editor is suitable
AI coding assistant (optional)	Claude Code, GitHub Copilot, or similar tools can accelerate development

For the general WinCC OA software requirements, see Software requirements.

Runtime Requirements

The following components are required to run a deployed WebUI Runtime application:


Requirement	Details
WinCC OA	Version 3.21 or later
webserver.js	Enabled with WebSocket support
Browser	Modern browser with ES module and Import Map support, Chrome recommended (see Software requirements)

Installation

Ensure Node.js® 22 LTS and npm 10 or later are installed. A WinCC OA project with an enabled webserver.js must be available.

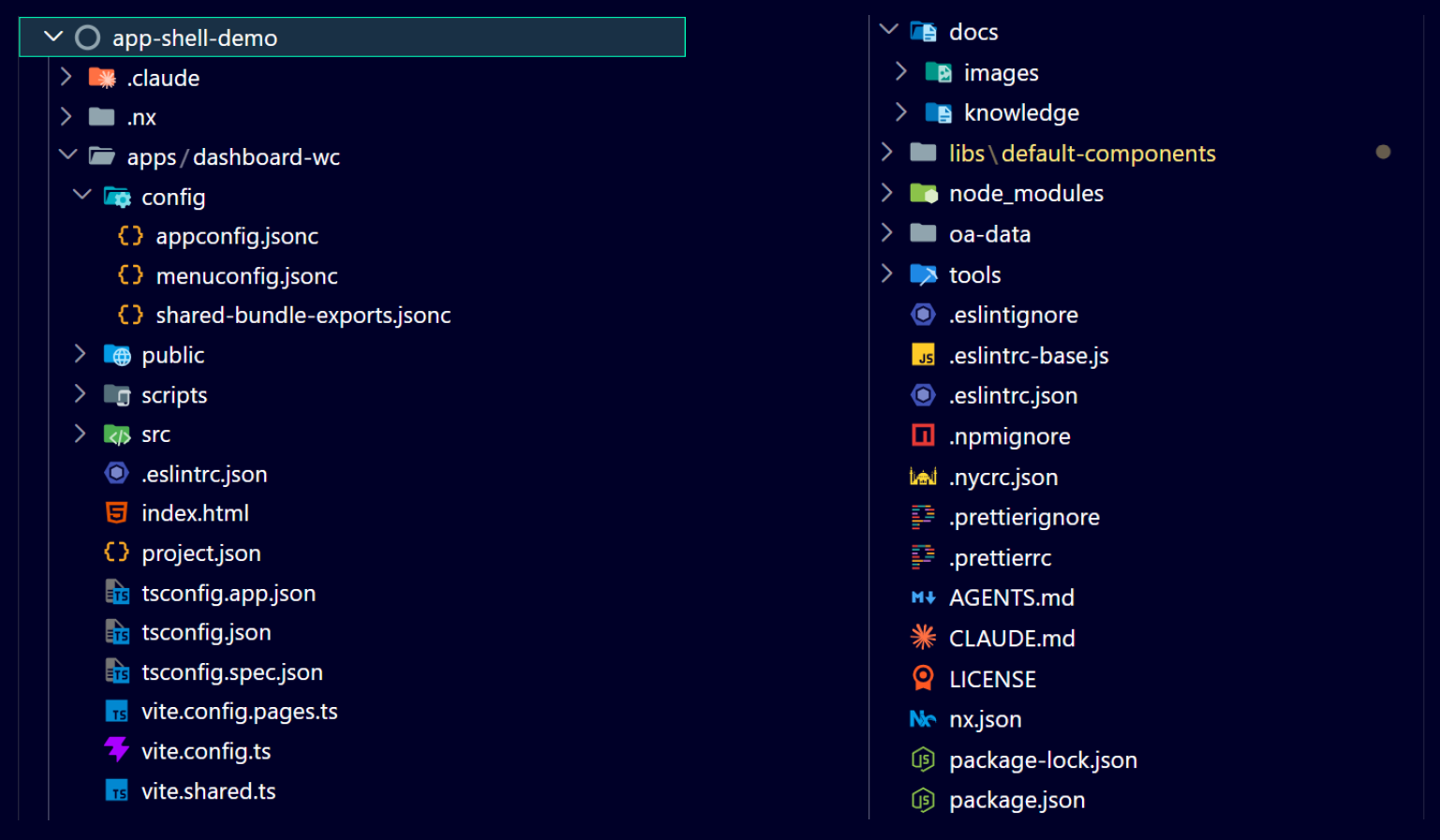

File tree of the WebUI Runtime engineering workspace — Figure 1. WebUI Runtime workspace structure

Create a new empty directory as your workspace and change into it.

Initialize the workspace by installing the @wincc-oa/webui-runtime package and running the init scripts:

npm install @wincc-oa/webui-runtime
npx webui-runtime-init
npm install --save-dev --no-audit --no-fund
npm run init:oa-data

Start the development server by running npm start. The development server starts at http://127.0.0.1:4300/ and proxies WebSocket and REST requests to the WinCC OA backend. The proxy target defaults to https://localhost. To point the dev server at a different WinCC OA backend, set the BASE_URL environment variable before running npm start. The value is read in vite.shared.ts and takes precedence over the default.
- PowerShell
- CMD
- Git Bash / Linux
```
$env:BASE_URL="https://my-host:8843"; npm start
```
```
set BASE_URL=https://my-host:8843 && npm start
```
```
export BASE_URL="https://my-host:8843" && npm start
```
Open a browser and verify the setup by navigating to:
```
http://127.0.0.1:4300/
```

The development server is now running and connected to the WinCC OA backend. Changes to source files trigger automatic page reloads.

Important:

When you initialize the workspace with npm install @wincc-oa/webui-runtime, you receive a snapshot of the workspace in its current form. If a new version of the WebUI Runtime is released and workspace files have changed, there is no automatic merge — you must set up a new workspace alongside the existing one and compare the files manually. To minimize migration effort, avoid modifying the original workspace files where possible, or document any changes you make.

Build and Deployment

To build the application and deploy it to a WinCC OA project, set the OUT_DIR environment variable to the data/dashboard-wc/ directory of the target project and run the build command.

PowerShell
CMD
Git Bash

$env:OUT_DIR="D:\WinCC_OA_Proj\3_21\MyProject\data\dashboard-wc"; npm run build

set OUT_DIR=D:\WinCC_OA_Proj\3_21\MyProject\data\dashboard-wc && npm run build

export OUT_DIR="D:\WinCC_OA_Proj\3_21\MyProject\data\dashboard-wc" && npm run build

The build pipeline executes the following stages:

1. Clean the output directory
2. Generate shared bundle entries
3. Build shared bundles (lit.js, ix.js, rxjs.js, wui.js)
4. Build the application (index.html, standalone pages, assets, Service Worker)

After the build completes, open the URL https://host:port/data/dashboard-wc/index.html in a browser, replacing host and port with the webserver.js address.

Note:

For faster iteration during development, use npm run build:pages to rebuild only the standalone pages without rebuilding shared bundles or assets.
