Definition of peripheral addresses for the S7Plus driver

This chapter describes the definition of peripheral addresses for the S7Plus driver.

Click on the _address config of a data point element, select the driver type SIMATIC S7Plus and click on Configure... to open the following panel.

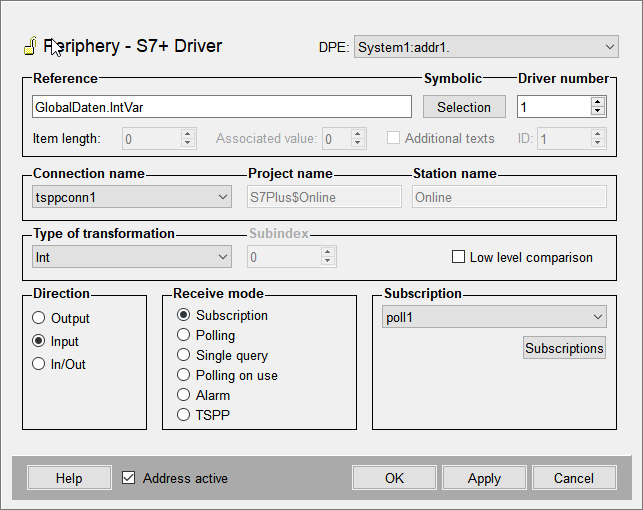

Figure 1. Definition of a peripheral address

Reference

To define the peripheral address, type the respective address manually or click on the "..." button to browse the TIA project.

Syntax

Data Address:

<Symbolic Address in the PLC>[:length]

Alarm Address:

<Symbolic Address in the PLC>:[associated value]:[additional text]
Note: Please note that the colons (":") are mandatory for alarm addresses, but the optional entries can be empty.

Symbolic - Selection

Click on this button to browse the TIA project (if a TIA project is loaded and the driver is running) and select the appropriate symbolic address.

  • File browsing: Already configured addresses still work with the existing TIA export. A new TIA export is only necessary if the changes shall be applied to WinCC OA. In this case you have to reselect the TIA project (see also Engineering).

  • Online browsing: A reconnect is necessary to apply the changes to WinCC OA.

Note:

Existing addresses are not automatically invalid in case of changes to the TIA portal (e.g. adding new data blocks or variables).

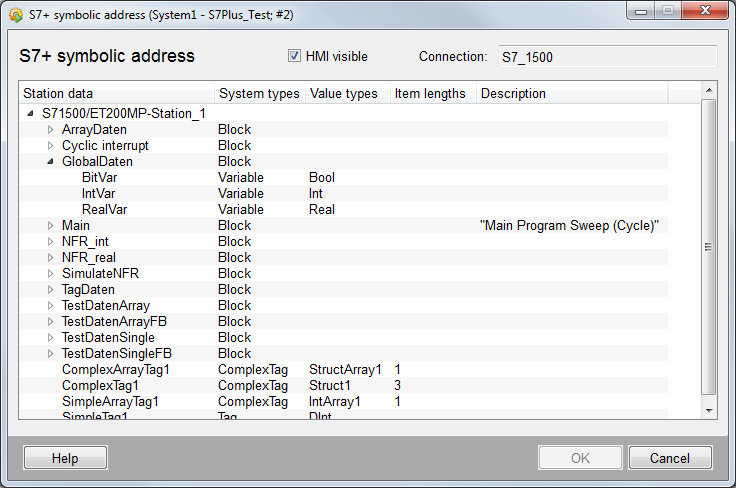

Figure 2. Selection of the symbolic address

HMI visible

You can define which data shall be visible in HMI via the TIA portal. Per default this panel only shows data which is designated as "HMI visible" int the TIA project. Use this check box to define if data which is not "HMI visible" shall also be displayed in the browse result.

Station data

Shows all data of the station selected from the TIA project.

System types

Shows the type of the respective node, e.g. block, variable or tag.

Value types

Shows the value type of the respective elements

Item length

Shows the length of arrays and strings

Driver number

Must match the number of the S7Plus driver assigned to the connection.

Item length

This setting is optional and allows to define how many characters of a string or how many array elements shall be read.

Associated value

Defines if one of the associated alert values (programmed in TIA portal) shall be used as original value of the data point element. 0 means that no original value is set. Only available for alarming.

Additional texts

Defines if additional texts (info text + 8 additional texts) shall be sent as additional values for the WinCC OA alert. Only available for alarming.

Name

Connection name

Select the appropriate connection from the combo box.

Project name

Shows the name of the selected TIA project.

Station name

Shows the name of the station selected from the TIA project.

Transformation

Type of transformation

The transformation type is the interpretation of data which was read from the peripheral device. It must match the defined address type. The transformation type is automatically set when you select the symbolic address via the "..." button. Use the combo box to manually select the type.

There are the following S7 data types and WinCC OA transformation types:

WinCC OA Transformation type S7 value type WinCC OA DPE type
Bool BOOL boolean
Byte BYTE uint
Word WORD uint
DWord DWORD bit32
LWord LWORD bit64
USint UINT8 uint
UInt UINT16 uint
UDInt UINT32 uint
ULInt UINT64 ulong
SInt INT8 int
Int INT16 int
DInt INT32 int
LInt INT64 long
Real REAL32 float
LReal REAL64 float
Date UINT16 time
DateTime UINT64 time
Time INT32 time
Time_Of_Day UINT32 time
LDateTime UINT64 time
LTime INT64 time
LTOD UINT64 time
DTL 12 Byte Struct time
S5Time UINT16 time
String UINT8[] string
WString UINT16[] string

Low level comparison

This can only be used if the direction is set to input or in/out. If you select this option, the driver only sends data if the value has changed. The comparison is based on raw data without any conversion. The single bits of byte blocks are compared to old values. If a bit changes, the value in WinCC OA is updated.

Direction

Define whether values shall be sent (output) or received (input). If you select in/out, both (sending and receiving) is possible.

Note:

When the values of a data point element are sent in both directions (In/Out), then this data point element must not be directly subordinated to a struct node (structure of values).

Receive mode

You can select one of the following receive modes for the input:

  • Subscriptions
  • Polling
  • Single query
  • Polling on use
  • Alarm (refer to S7Plus PLC Alarms for further information on receive mode "Alarm")
  • TSPP (refer to TSPP for further information on receive mode "TSPP")

Subscriptions

This button allows you to create and configure Subscriptions. You can also select, edit, enable or disable already existing subscriptions.

Poll group

This button allows you to create and configure Poll groups. You can also select, edit, enable or disable already existing poll groups.

Note:

A poll group must not be used for polling and as subscription at the same time. For example, the poll group PG1 is used for an address with receive mode "Subscriptions", you must not use this poll group for an address with receive mode "Polling".

Address active

If you enable this check box, the address is created in the driver (see also reference tables). Attributes can be set and queried for an inactive address, however, the address does not exist for the driver. This means that no values can be sent or received from the PLC.
