STD_PANELS

These symbols are used to open various WinCC OA standard panels. Please see the respective chapters of the documentation for a detailed description.

The buttons with PT_* are used to create a Panel topology. For a correct use read the chapter Panel topology and group alerts at first.


Symbol	Symbol name	Description
	as_button	Opens the Alert panel; authorization: operator
	as_button_Conf	Opens the alert panel with a specific configuration; authorization: operator
	es_button	Opens the Event panel; authorization: operator
	es_button_Conf	Opens the event panel with a specific configuration; authorization: operator
	help_button_large	Opens the Online Help at the place of the specified keyword.
	help_button_small	Opens the Online Help at the place of the specified keyword.
	navigation	Opens the navigator (see Zooming/Panning) for a defined module. If the panel navigator.pnl is opened without a parameter $moduleName or with moduleName=="" or the module name does not exist, then myModuleName() is used, otherwise the module of the parameter $moduleName is defined.
	note_info	Opens the notice board. It provides an information platform for the exchange of important messages between the system users.
	PT_cascade0_1	Start cascade of Panel topology template 1
	PT_cascade0_2	Start cascade of Panel topology template 2
	PT_cascade1	Opens the configuration panel of the Panel topology
	PT_cascade2	Opens the Configuration panel of the Panel topology
	PT_down1	Navigation button of the Panel topology (for user defined templates)
	PT_home1	Navigation button of the Panel topology (for user defined templates)
	PT_jump	Opens the configuration panel of the Panel topology, for defining the panel to jump at.
	PT_jumpDown	Opens the configuration panel of the Panel topology, for defining the panel to jump at.
	PT_jumpLeft	Opens the configuration panel of the Panel topology, for defining the panel to jump at.
	PT_jumpRight	Opens the configuration panel of the Panel topology, for defining the panel to jump at.
	PT_jumpUp	Opens the configuration panel of the Panel topology, for defining the panel to jump at.
	PT_left1	Navigation button of the Panel topology (for user defined templates)
	PT_navi_as	Alert panel for the navigation bar of the Panel topology; depending of the authorization (at leastoperator) enabled.
	PT_navi_gq	Acknowledge all for the navigation bar of the Panel topology; depending of the authorization (at least operator) enabled.
	PT_navi_hlp	Online help for the navigation bar of the Panel topology; depending of the authorization (at least operator) enabled.
	PT_navi_hq	Horn acknowledge for the navigation bar of the Panel topology; depending of the authorization (at least operator) enabled.
	PT_navi_sm	System management for the navigation bar of the Panel topology; depending of the authorization (at least "para") enabled.
	PT_navi_vt	Variable Trend for the navigation bar of the Panel topology; depending of the authorization (at least operator) enabled.
	PT_naviCompact	Button containing the navigation Home, left, right, up, down.
	PT_panelOn	For configured Panel topology. The button displays a modal childpanel with the current selected panel. You can select another panel for opening in the Panel topology with OK or double clicking. Childpanels are not displayed in this feature.
	PT_panelring	Opens a combo box for panel selection (up to 20 panels). CAUTION: Only to be used in the navigation bar of the Panel topology. You have to modify the template bars (delete/move/decrease buttons and insert the panel ring) in <wincc_oa_path>/panels/para/templates/naviPanel*
	PT_right1	Navigation button of the Panel topology (for user defined templates)
	PT_sum1	Opens the panel for directly selection of the Panel topology, for defining the panel with the group alerts.
	PT_sum2	Opens the panel for directly selection of the Panel topology, for defining the panel with the group alerts.
	PT_sum3	Opens thepanel for directly selection of the Panel topology, for defining the panel with the group alerts.
	PT_sum4	Opens the panel for directly selection of the Panel topology, for defining the panel with the group alerts. Colors of reference are editable.
	PT_sum5	Opens the panel for directly selection of the Panel topology, for defining the panel with the group alerts.
	PT_sumq	Opens the panel for directly selection of the Panel topology, for defining the panel with the group alerts.
	PT_up1	Navigation button of the Panel topology (for user defined templates)
	PT_user	Button for changing the user without restart of the module (VISION). This button can be used in the navigation bar of the panel topology.
	StartExcelReportButton	Button for opening the Excelreport (see WinCC OA Report)
	sys_button	Opens the System management panel; authorization: para
	trend_button	Opens the Variable trend display panel.; authorization: operator
	trend_button_Conf	Opens the Variable trend display in a specific configuration. The desired configuration (e.g. VarTrend_0001) must be specified in the reference editor. Authorization: operator
	zoomIn	Zoom the panel with the current factor multiplied by 1.5 (depending on maxZoomFactor)
	zoomOrig	Resizes the panel to original size
	zoomOut	Zoom the panel with the current factor divided by 1.5 (depending on minZoomFactor)

How to add a standard symbol to a panel is described in the following.

Select the WinCC OA object catalog in the GEDI via View > Catalogue > <version_path>.
Select the object catalog STD_PANELS.

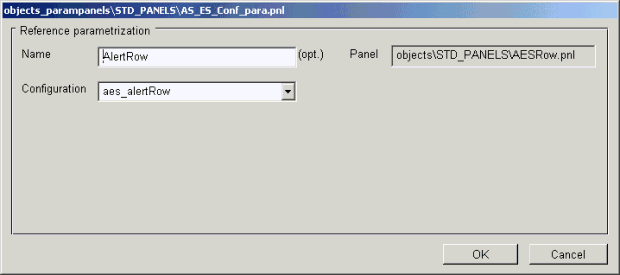

Select e.g. the object AESRow and add it via drag and drop to the panel. The following configuration panel is opened for the configuration of the object:

You can select a configuration via the panel. Configurations can be created via the table configuration panel of the alert and event panel (the panel is opened via System management > Settings > AES - Row/Screen). If you e.g. want to change the size of the AlertRow symbol you can do it via overriding in the GEDI. For more information on overriding see chapter properties of references and overridden configuration.

Define a name for the reference.
Add the reference to the panel via the OK button.
Save the panel and open it. The current alerts are shown:
