Sparkplug B

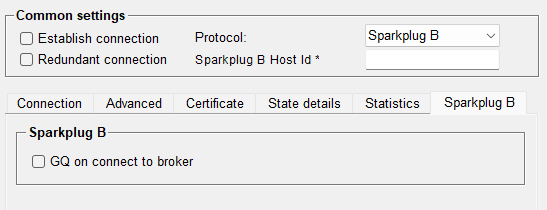

This tab appears if Sparkplug B is selected as protocol.

GQ on connect to broker

If this checkbox is ticked, the driver will perform a General Query when connecting to the broker.
